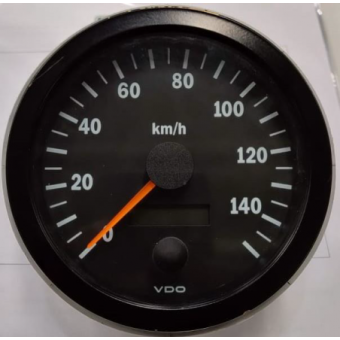

VDO 437-015-047C - Cockpit Vision Speedometer 150 Kmh 100mm 12-24V

Article VDO.437015047C

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The VDO 437-015-047C Cockpit Vision Speedometer features a 100 mm diameter with installation depths of 91 mm and offers an analog speed range of 0 to 220 Mph. It includes functionality for an odometer and trip counter, and is compatible with various RPM sensors. The unit connects via an 8-pole AMP blade connector and requires an operating voltage of 11 - 30 Volt DC with a current consumption of less than 100 mA. It also includes reverse polarity protection.

Description
Ask a Question

VDO 437-015-047C - Cockpit Vision Speedometer 150 Kmh 100mm 12-24V
The VDO 437-015-047C Cockpit Vision Speedometer is a precision instrument designed for a wide range of vehicles. It offers a sleek, analog display and a robust set of features to monitor your speed and vehicle performance accurately.

Installation Specifications:
- Installation (Hole) Diameter and Outside Diameter: 100 mm - 4 Inch and 105 mm - 4 1/8 Inch
- Installation Depth: 91 mm
- Locking Height with Spinlock Nut: Optional 0.5 mm - 23 mm
- Locking Height with Bracket: 0.5 mm - 12 mm
- Flushmount: None
Functionality:
- Analog Speed Range: 0 to 220 Mph
- Display Functionality: Odometer, Trip Counter
- Sensor Signal Analog Speedo Gauge: RPM Inductive Sensor, RPM Hall Sensor, RPM Blocking Oscillator Sensor
- Accuracy: Not Specified by VDO
Connection Details:
- Connection: 8-Pole AMP Male Blade Connector 6.3 x 0.8 mm
- Illumination Connection: AMP Male Blade Connector 6.3 x 0.8 mm (4x)
Power Supply:
- Operating Voltage: 11 - 30 Volt DC
- Current Consumption Without Illumination: < 100 mA
- Reverse Polarity Protection: Yes
