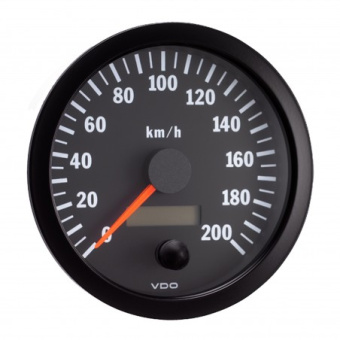

VDO 437-015-007G - Cockpit Vision Speedometer 200 Km/h 100mm 12-24V

SKU: VDO 437015007G

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The VDO 437-015-007G Cockpit Vision Speedometer is a high-precision 12-24V DC instrument designed for accurate speed measurement up to 200 Km/h. With a sleek black dial and customizable backlight options in white, green, or red, it ensures clear visibility under any lighting conditions. This speedometer features a robust IP64-rated design, protecting it from dust, water, and UV exposure, making it ideal for automotive, marine, and industrial applications. Its compact 100 mm installation size and easy-to-use AMP connectors simplify installation, while the included odometer and trip counter add functionality. Designed for durability and reliability, this VDO speedometer offers precise speed monitoring and long-lasting performance for any vehicle.

Description
Ask a Question

VDO 437-015-007G - Cockpit Vision Speedometer 200 Km/h 100mm 12-24V

Key Features:
- High-precision speedometer with a measurement range of 0 to 200 Km/h
- Designed for 12-24V DC systems with analog speed signal compatibility
- Displays odometer and trip counter functions for comprehensive vehicle tracking
- Compact 100 mm (4 Inch) panel hole size for easy installation
- Offers backlight illumination in white, green, or red for enhanced visibility
- IP64-rated front for protection against dust, water, ozone, and UV exposure
- Durable anti-glare lens with a flame-retardant housing
Specifications:
- Manufacturer: VDO
- Part Number: 437-015-007G
- Product Type: Speedometer
- Speed Measurement Range: 0 to 200 Km/h
- Operating Voltage: 11 - 30 Volt DC
- Current Consumption (without illumination): < 100 mA
- Signal Input: Analog (RPM inductive sensor, RPM Hall sensor, RPM blocking oscillator sensor)
- Installation Dimension: 100 mm (4 Inch) panel hole
- Outside Diameter: 105 mm (4 1/8 Inch)
- Installation Depth: 91 mm
- Connector Type: 8-Pole AMP Male blade connector (6.3 x 0.8 mm)
- Dial Illumination: Backlight (12V - 2 Watt White, Green, Red and 24V - 2 Watt - Optional)
- Deflection Angle: 320°
- Bezel Model: Black triangle (interchangeable with special tool)
- Lens: Plastic, anti-glare
- Protection Class:
  - Front: IP64 (DIN 40050) - Ozon proof - UV proof
  - Rear: IP42 (DIN 40050)
- Operating Temperature: -20°C to +70°C
- Housing: Plastic flame retardant
- Compliance: CE Standard, EMC-tested according to EN 13309 and ISO 13766
- Packaging: VDO Instrument Retail Package
- Country of Origin: Germany
- Category: Speedometers
Compatibility and Application:
- Applications: Ideal for automotive, marine, and industrial applications requiring precise speed measurement and monitoring.
- Input Signal: Compatible with RPM inductive, Hall, and blocking oscillator sensors for versatile use in different systems.
Benefits:
- Provides accurate speed readings to optimize engine performance and vehicle operation
- Backlit dial enhances visibility in low-light conditions, with customizable color options
- Durable, weather-resistant design ensures reliable performance in harsh environments
- Easy installation with a standard 100 mm panel hole size and AMP connectors
- Comprehensive functionality with odometer and trip counter displays
- Perfect for monitoring vehicle speed in automotive, marine, and industrial settings
- Reliable and long-lasting performance backed by VDO’s quality engineering standards
