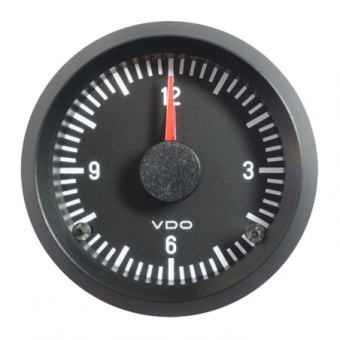

VDO 370-214-031-003G - Cockpit International Quartz Clock 52mm 24V

VDO 370-214-031-003G - Cockpit International Quartz Clock 52mm 24V

The VDO 370-214-031-003G Cockpit International Quartz Clock is a high-quality analog clock designed for precise timekeeping in vehicles and marine applications. Featuring a 52mm (2 1/16") panel hole diameter, it is designed for 24V DC electrical systems and provides accurate time measurements within a 0-12 hour range. The clock includes a red backlight pointer and offers multiple dial illumination options, including white, green, and red lighting. With robust protection against environmental conditions (IP64 front, IP42 rear) and a durable plastic flame-retardant housing, this clock is built to withstand extreme temperatures from -30°C to +85°C. It also features reverse polarity protection and short circuit protection for added reliability. The VDO Cockpit International Quartz Clock combines functionality and durability, making it an ideal addition to any cockpit or dashboard.

Key Features:

• Panel hole diameter: 52 mm (2 1/16") with an outside diameter of 59.25 mm (2 1/3") for easy installation
• Operating voltage: 24 Volt DC, compatible with a wide range of vehicles and systems
• Time measurement range: 0 - 12 hours with a push-button time adjustment
• Dial illumination: Optional floodlight with 12V (3.4W) or 24V (3W) in white, green, or red
• Red backlight pointer for easy readability
• Front protection class: IP64 (DIN 40050) - ozone proof and UV proof, ensuring durability in harsh environments
• Operating temperature range: -30°C to +85°C, suitable for extreme conditions

Specifications:

• Model: Cockpit International Quartz Clock
• Panel Hole Diameter: 52 mm (2 1/16")
• Outside Diameter: 59.25 mm (2 1/3")
• Installation Depth: 53 mm
• Locking Height with Spinlock Nut: 0.5 mm to 20 mm
• Locking Height with Bracket: Not available
• Dial Colour: Black
• Deflection Angle: 360°
• Lens: Single - Anti-glare plastic lens
• Power Supply: 21.5 - 30V DC
• Current Consumption (without illumination): < 23 mA
• Connection: AMP Male Blade Connector 6.3 x 0.8mm (2x)
• Reverse Polarity Protection: Yes
• Short Circuit Protection: Not specified by VDO
• Warning Indication: None
• Accuracy: Not specified by VDO
• Operating Temperature: -30°C to +85°C
• Humidity: Not specified by VDO
• Front Protection: IP64 (DIN 40050) - Ozone proof and UV proof
• Rear Protection: IP42 (DIN 40050)
• CE Standard: Yes
• Mechanical Shock: Max 1G, 25Hz - 2000Hz for 8 hours
• EMC Test: According to EN 13309 and ISO 13766
• Nominal Position: NL 0 to NL 90 - DIN 16257
• Housing Material: Plastic flame retardant
• Bezel: Interchangeable, triangular black bezel (special tool required)

Compatibility:

This 52mm quartz clock is designed for use in vehicles, machinery, and marine applications that require a reliable and easy-to-read timekeeping device. It is compatible with VDO Cockpit International systems and can be integrated into a wide variety of dashboards or instrument panels.

Benefits:

• Provides precise timekeeping with a clear and easy-to-read 0-12 hour scale
• Reliable performance in extreme conditions, with an operating temperature range of -30°C to +85°C
• Front protection class IP64 ensures durability and resistance to environmental factors like ozone and UV exposure
• Low current consumption (<23 mA) for efficient energy use in 24V DC systems
• Red backlight pointer and optional dial illumination in multiple colours for better visibility
• Easy to install with a standard 52mm hole diameter and an interchangeable bezel
• Compliance with CE standards for safety and reliability
