VDO 362-081-002-004C - DS Pressure Sender 0-28 Bar - 1/8-27 NPTF

VDO 362-081-002-004C - DS Pressure Sender 0-28 Bar - 1/8-27 NPTF

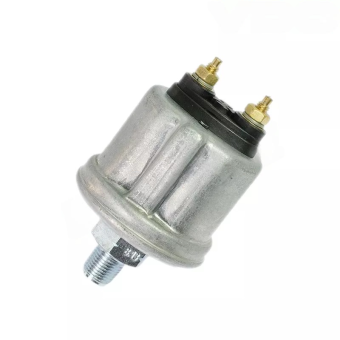

The VDO 362-081-002-004C DS Pressure Sender is a high-performance sensor designed for precise pressure monitoring in automotive, marine, and industrial engine systems. It features a pressure range of 0 to 28 Bar, offering reliable data for gear oil pressure monitoring. This sensor uses a 1/8 - 27 NPTF thread for secure installation and supports an operating voltage range of 6-24 V DC, making it suitable for a wide range of applications. With no warning contact and a dual-pole insulated return signal, it is ideal for precise analog pressure measurement in systems where no warning signal is needed.

Key Features

• Pressure measuring range: 0 to 28 Bar (0 - 406 PSI, 0 - 2800 KPa).
• Maximum pressure tolerance: 50 Bar for 2 seconds.
• Thread type: 1/8 - 27 NPTF, suitable for easy installation in most engine systems.
• Operating temperature range: -25°C to +100°C, making it versatile for harsh environments.
• Dual-pole insulated return sensor signal for reliable performance.
• Resistor range: 5 - 90 Ohm, providing precise analog output for accurate readings.
• Optional warning contact available through the VDO A2C59510886 Makepoint Switch for additional safety features.

Specifications

• Pressure Measurement Range: 0 - 28 Bar (0 - 406 PSI, 0 - 2800 KPa)
• Maximum Pressure: 50 Bar (for 2 seconds)
• Thread Type: 1/8" - 27 NPTF Male
• Thread Length (L2): 11 mm
• Length with Nut (L1): 19.5 mm
• Torque: 30 Nm
• Operating Temperature: -25°C to +100°C
• Pressure Medium: Oil, Fuel, Air
• Operating Voltage: 6 - 24 V DC
• Resistor Range: 5 - 90 Ohm
• Sensor Signal: Dual-Pole insulated return
• Warning Contact: None (Optional with VDO A2C59510886 Makepoint Switch)
• Connector Type: M4 Hexagonal nut
• Packaging: VDO Sensor retail package
• Country of Origin: Germany

Compatibility and Application

• Ideal for gear oil pressure monitoring in automotive, marine, and industrial applications.
• Compatible with VDO engine monitoring systems, offering precise analog pressure readings for performance management.
• Suitable for systems requiring no warning contact, but can be upgraded with an optional VDO warning contact for additional safety.
• Used in marine flybridge systems for accurate pressure measurement in demanding environments.

Benefits

• Ensures accurate pressure readings for enhanced engine performance and longevity.
• Durable construction designed to withstand extreme temperatures and pressure conditions.
• Dual-pole insulated return signal ensures stable and reliable sensor output.
• Simple installation with the 1/8 - 27 NPTF thread for easy integration into most systems.
• Optional warning contact feature provides additional safety when needed.
