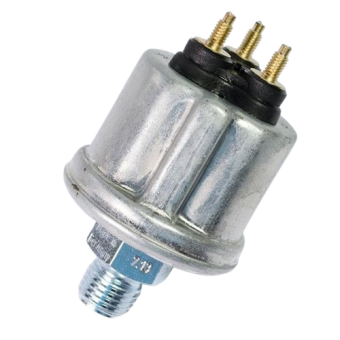

VDO 360-081-039-015C - Pressure Sender 0-5 Bar - 1/8-27 NPTF

SKU: VDO 360081039015C

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The VDO 360-081-039-015C Pressure Sender 0-5 Bar is a high-performance sensor designed for accurate pressure monitoring in automotive and industrial applications. With a pressure range of 0 to 5 Bar (0 to 72.5 PSI), it ensures precise readings for oil, fuel, and air pressure systems. The sender features a 1/8" - 27 NPTF thread, providing easy installation and compatibility with various engine and machinery setups. Equipped with a dual-pole insulated return sensor and a warning contact set at 0.25 Bar ± 0.15 Bar, this pressure sender offers early alerts for pressure drops, helping to prevent potential system damage. It operates within a temperature range of -25°C to +100°C and supports a voltage range of 6-24 V DC, making it suitable for a wide array of applications. Whether you're monitoring engine oil pressure or ensuring the proper functioning of fuel and air systems, the VDO 360-081-039-015C delivers reliable, accurate performance.

Description
Ask a Question

VDO 360-081-039-015C - Pressure Sender 0-5 Bar - 1/8-27 NPTF

The VDO 360-081-039-015C Pressure Sender is a high-quality sensor designed to accurately monitor engine oil, fuel, and air pressure in various automotive and industrial applications. With a pressure range of 0 to 5 Bar (0 to 72.5 PSI), it ensures precise pressure measurement, critical for maintaining optimal engine performance and preventing potential damage. This sender is built with a 1/8" - 27 NPTF thread, making it compatible with a wide range of vehicles and machinery. The warning contact triggers at 0.25 Bar ± 0.15 Bar, providing early alerts when pressure drops below this threshold.

Key Features:
- Pressure range: 0 to 5 Bar (0 to 72.5 PSI)
- Thread: 1/8" - 27 NPTF for secure installation
- Sender resistance range: 10 - 184 Ohm for accurate signal transmission
- Dual-pole insulated return sensor signal for stable performance
- Warning contact at 0.25 Bar ± 0.15 Bar, closes with falling pressure
- Maximum pressure: 30 Bar for short periods (2 seconds)
- Operating voltage: 6-24 V DC, compatible with most systems
- Wide operating temperature range: -25°C to +100°C
- Suitable for use with oil, fuel, and air as pressure mediums
- Compact design with a torque requirement of 30 Nm
Specifications:
- Pressure Measurement Range: 0 - 5 Bar, 0 - 72.5 PSI, 0 - 500 KPa
- Thread Size: 1/8" - 27 NPTF
- Sender Element Length: 19.5 mm (Thread + Nut)
- Torque: 30 Nm
- Warning Contact: 0.25 Bar ± 0.15 Bar
- Warning Contact Switching Capacity: Maximum 5 Watt (non-inductive)
- Operating Voltage: 6 - 24 V DC
- Resistor Range: 10 - 184 Ohm
- Electrical Connection: M4 AMP Male 6.3 x 0.8 mm (50°)
- Connector Type: M4 Vlakstekker 6.3 x 0.8 mm
- Operating Temperature: -25°C to +100°C
- Pressure Medium: Oil, Fuel, Air
- Country of Origin: Germany
Applications:
- Engine oil pressure monitoring
- Automotive, industrial, and marine engine systems
- Oil and fuel systems requiring accurate pressure readings
Benefits:
- Ensures reliable and accurate engine pressure readings for better performance
- Warning contact provides early detection of pressure drops to avoid damage
- Durable construction with wide temperature tolerance for harsh environments
- Compatible with various pressure mediums like oil, fuel, and air
- Simple installation with standard 1/8" - 27 NPTF thread and AMP male connectors
