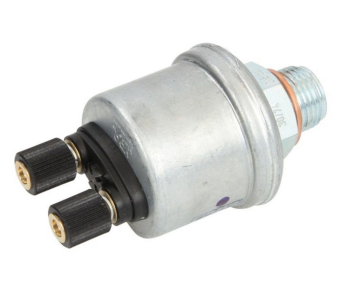

VDO 360-081-030-074C - Pressure Sender 0-10 Bar - M18

VDO 360-081-030-074C - Pressure Sender 0-10 Bar - M18

The VDO 360-081-030-074C Pressure Sender is designed for precise engine oil pressure monitoring in automotive and industrial systems. With a pressure measurement range from 0 to 10 Bar (0-145 PSI, 0-1000 KPa), it ensures reliable and accurate readings in various applications. This sensor supports oil, fuel, and air as pressure mediums and offers easy installation with an M18 x 1.5 thread. Its durable construction allows it to operate within a temperature range of -25°C to +100°C, making it suitable for harsh environments. With a wide operating voltage range of 6-24 V DC and a reliable warning contact, this pressure sender is an essential component for engine monitoring systems.

Key Features:

• Pressure range from 0 to 10 Bar (0-145 PSI), suitable for monitoring engine oil pressure, fuel, and air systems.
• Maximum pressure tolerance of 30 Bar for up to 2 seconds, providing robust performance in extreme conditions.
• Warning contact set at 0.50 Bar ± 0.20 Bar, offering early alerts when pressure drops below the desired level.
• Easy installation with an M18 x 1.5 thread and a durable M4 plastic knurled nut connector for secure electrical connections.
• Wide operating temperature range of -25°C to +100°C, ensuring reliable functionality in both hot and cold environments.
• Compatible with various pressure mediums including oil, fuel, and air, offering versatility for different engine monitoring systems.
• Resistor range of 10 - 184 Ohm for precise analog signal output.

Specifications:

• Pressure Measurement Range: 0 - 10 Bar (0 - 145 PSI, 0 - 1000 KPa)
• Thread: M18 x 1.5 Male
• Warning Contact: 0.50 Bar ± 0.20 Bar
• Warning Contact Connector: M4 Plastic knurled nut
• Operating Voltage: 6 - 24 V DC
• Resistor Range: 10 - 184 Ohm
• Sensor Signal: Common ground
• Connector Type: M4 Plastic knurled nut
• Packaging: VDO Sensor retail package
• Country of Origin: Germany
• Category: Pressure senders
• Functionality: Engine oil pressure monitoring
• Signal Output: Analog, 10 - 184 Ohm
• Operating Temperature Range: -25°C to +100°C
• Maximum Pressure: 30 Bar for up to 2 seconds
• Thread Length: 12 mm
• Length with Nut (L1): 20.5 mm
• Torque: 100 Nm
• Warning Contact Switching Capacity: Maximum 5 Watt (non-inductive)
• Pressure Medium: Oil, Fuel, Air

Application:

This VDO pressure sender is ideal for use in engine monitoring systems, providing accurate oil pressure readings to ensure the optimal performance of your engine. It is compatible with automotive, industrial, and other systems that require reliable pressure monitoring of oil, fuel, and air.

Benefits:

• Reliable monitoring of engine oil pressure and other pressure mediums.
• Provides early warning with a precise warning contact set at 0.50 Bar ± 0.20 Bar.
• Robust design withstands high-pressure conditions (up to 30 Bar for 2 seconds).
• Versatile, with compatibility for oil, fuel, and air pressure measurement.
• Durable construction ensures long-lasting performance in temperatures from -25°C to +100°C.
• Precise analog output (10 - 184 Ohm) for accurate signal transmission in engine monitoring systems.
