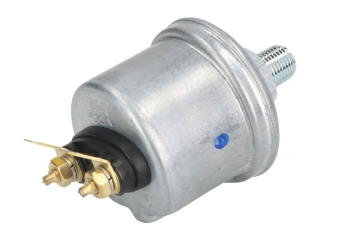

VDO 360-081-030-031C - Pressure Sender 0-10 Bar - M10

VDO 360-081-030-031C - Pressure Sender 0-10 Bar - M10

The VDO 360-081-030-031C Pressure Sender is an advanced sensor designed for monitoring engine oil, fuel, and air pressures in various applications. It provides precise pressure readings within a range of 0 to 10 Bar (0 - 145 PSI, 0 - 1000 KPa), ensuring optimal engine performance. The sensor operates efficiently within a voltage range of 6-24 V DC and features a robust M10 x 1 tapered short thread for easy installation. This sender also offers a warning contact at 0.50 Bar ± 0.15 Bar to alert users of low-pressure conditions. With an operating temperature range from -25°C to +100°C, it’s built to withstand harsh environments. Designed for automotive and industrial use, this sensor guarantees reliable performance and seamless integration with engine monitoring systems.

Key Features:

• Monitors pressure from 0 to 10 Bar (0-145 PSI, 0-1000 KPa), ensuring precise engine and system pressure readings.
• Warning contact at 0.50 Bar ± 0.15 Bar for early detection of low pressure.
• Operates in harsh conditions with a wide temperature range of -25°C to +100°C.
• Maximum pressure tolerance of 30 Bar for short bursts (2 seconds) for added durability.
• Simple installation with M10 x 1 tapered short thread and torque rating of 30 Nm.
• Offers accurate and reliable analog signal output (10 - 184 Ohm) for seamless integration with engine monitoring systems.
• Compatible with oil, fuel, and air mediums for versatile applications.
• Warning contact closes with falling pressure, providing an effective alert mechanism.
• Resilient to environmental stress and vibration, ensuring longevity in demanding applications.
• Comes with AMP Male 6.3 x 0.8 mm connectors for easy electrical integration.

Specifications:

• Pressure Range: 0 - 10 Bar (0 - 145 PSI, 0 - 1000 KPa)
• Maximum Pressure: 30 Bar for 2 seconds
• Thread: M10 x 1 Male tapered short
• Thread Length: 11 mm
• Length with Thread & Nut: 19.5 mm
• Operating Temperature: -25°C to +100°C
• Resistance Range: 10 - 184 Ohm
• Warning Contact: 0.50 Bar ± 0.15 Bar (Closes with falling pressure)
• Warning Contact Switching Capacity: 5 Watt non-inductive
• Torque: 30 Nm
• Operating Voltage: 6 - 24 V DC
• Pressure Medium Compatibility: Oil, Fuel, Air
• Connector Type: M4 AMP Male 6.3 x 0.8 mm 50° (Sensor), AMP Male 6.3 x 0.8 mm 50° (Warning Contact)
• Signal Output: Analog, 10 - 184 Ohm
• Sensor Signal: Common Ground
• Warning Contact Feature: Closes with falling pressure
• Packaging: VDO Sensor retail package
• Country of Origin: Germany
• Application: VDO Engine monitoring

Benefits:

• Reliable and accurate pressure monitoring for critical engine systems, ensuring long-term engine health.
• Warning contact alerts at 0.50 Bar ± 0.15 Bar to prevent damage due to low pressure.
• Wide temperature tolerance (-25°C to +100°C) allows for use in diverse and extreme operating environments.
• High-pressure tolerance (30 Bar for 2 seconds) ensures sensor durability even during sudden pressure spikes.
• Easy installation with a tapered M10 x 1 thread and clear torque requirements for secure mounting.
• Seamless integration with other VDO engine monitoring systems via analog output and AMP connectors.
• Built for long-term reliability with durable materials, offering protection against environmental stress and vibration.
• Effective alert system with warning contact closing at falling pressure, providing timely notifications.
• Compatible with oil, fuel, and air pressure mediums, making it suitable for various industrial and automotive applications.
• CE certified for quality assurance and compliance with international standards.

Compatibility:

This pressure sender is designed for use in automotive, industrial, and engine monitoring applications where reliable pressure measurement is essential. It is particularly well-suited for systems using oil, fuel, or air as pressure mediums, including engine and fuel monitoring applications.
