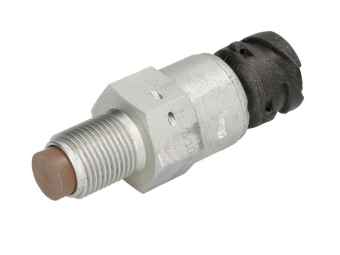

VDO 340-216-008-010Z - Blocking Oscillator Tacho - Speed Sender - M18

VDO 340-216-008-010Z - Blocking Oscillator Tacho - Speed Sender - M18

The VDO 340-216-008-010Z Blocking Oscillator Tacho Speed Sender is a precision sensor designed for accurate RPM measurement in a variety of automotive and industrial applications. Featuring an M18 x 1.5 male thread for secure attachment, this high-quality sender provides a maximum frequency of 400 Hz, translating to 24,000 pulses per minute. The sensor is built to perform reliably under extreme conditions, with an operating temperature range from -40°C to +130°C. It includes a 4-pole special OEM connector and operates with a stabilized power supply of 6.3 - 8V DC, making it a versatile and dependable solution for engine monitoring systems. Manufactured in the Czech Republic, this sensor is packaged in a retail-ready format for easy installation and integration into VDO engine management systems.

Key Features:

• Sender type: Blocking Oscillator - 400 Hz for precise RPM measurement
• Thread: M18 x 1.5 Male for secure installation
• Power supply: 6.3 - 8V DC stabilized for consistent operation
• Signal output: Insulated return for reliable signal transmission
• Maximum frequency: 400 Hz (24,000 pulses per minute) for high precision
• Operating temperature range: -40°C to +130°C for extreme environment reliability
• Compact sender length (L2): 78.6 mm ± 1 mm, with a sender element length (L1) of 25 mm
• Low power consumption: Only 12 mA, ensuring efficient use
• Distance between sender and pulse generator: 0.3 mm to 1.4 mm
• Connector: 4-pole special OEM for secure and reliable connection

Specifications:

• Operating Voltage: 6.3 - 8V DC stabilized
• Signal Output: Insulated return
• Connector: 4-pole special OEM connector
• Current Consumption: 12 mA
• Measurement Range: 0 - 400 Hz
• Sender Length (L2): 78.6 mm ± 1 mm
• Sender Element Length (L1): 25 mm
• Distance between Sender and Pulse Generator: 0.3 mm to 1.4 mm
• Temperature Range: -40°C to +130°C
• Country of Origin: Czech Republic
• Functionality: Blocking Oscillator sensor
• Duty Cycle: 1.43 to 3.33 for stable signal generation
• Maximum Pulse Rate: 24,000 pulses per minute
• Connector Pinout: 4-pin special OEM for secure and stable connections
• Environmental Protection: Resistant to harsh conditions, suitable for demanding applications
• Material: High-grade industrial materials for longevity and performance
• Compliance: RoHS Compliant (Restriction of Hazardous Substances)

Compatibility:

This sensor is ideal for use with VDO engine monitoring systems and is designed to integrate seamlessly with VDO products requiring precise RPM measurements. It is well-suited for automotive and industrial applications that demand accurate pulse signal generation and reliable performance in extreme conditions.

Benefits:

• Provides accurate RPM measurement with a high-frequency range of up to 400 Hz
• Reliable performance in extreme temperatures from -40°C to +130°C
• Durable M18 x 1.5 male thread ensures secure installation
• Low current consumption (12 mA) for efficient operation in engine monitoring systems
• Rugged construction designed to withstand harsh environmental conditions
• Easy integration with VDO engine monitoring systems, offering stable signal output
• Ideal for high-precision engine management applications
