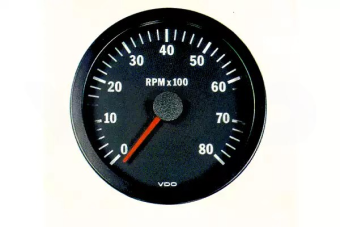

VDO 333-015-010K - Cockpit Vision Tachometer 8.000 RPM 52mm 12V

SKU: VDO 333015010K

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The VDO 333-015-010K Cockpit Vision Tachometer is a compact and reliable instrument designed for precise engine RPM monitoring, supporting a range of 0 to 8,000 RPM. Its 52mm design fits seamlessly into dashboards, featuring a black anti-glare dial and a red backlit pointer for excellent visibility. Compatible with alternator terminal W and ignition terminal 1, it ensures accurate signal input for automotive and industrial applications. With programmable functionality, it offers customization to meet specific requirements, while its IP64-rated front protection resists UV, ozone, and water splashes. Operating at 12V with optional 24V illumination in white, green, or red, this tachometer is CE-certified and EMC-tested, providing durable and dependable performance for optimal engine management.

Description
Ask a Question

VDO 333-015-010K - Cockpit Vision Tachometer 8,000 RPM 52mm 12V

Key Features:
- Analog RPM range: 0 to 8,000 RPM for precise engine performance monitoring
- Compact 52mm (2 1/16 inch) panel hole diameter for seamless integration
- Compatible with alternator terminal W or ignition terminal 1 for signal input
- Black anti-glare dial with red backlit pointer for clear visibility
- Backlight illumination in white, green, or red (12V - 2 Watt, optional 24V)
- Programmable functionality for customized settings
- Durable triangular black threaded bezel for secure mounting
- IP64-rated front protection for resistance to UV, ozone, and water splashes
Specifications:
- Panel hole diameter: 52 mm (2 1/16 inches)
- Outside diameter: 59.25 mm (2 1/3 inches)
- Installation depth: 91 mm
- Locking height with spinlock nut: Optional 0.5 mm - 23 mm
- Locking height with bracket: 0.5 mm - 12 mm
- Operating voltage: 11 - 16 Volt DC
- Current consumption without illumination: Less than 100 mA
- Deflection angle: 320°
- Connection type: AMP Male blade connector (6.3 x 0.8 mm, 4x signal, 2x illumination)
- Illumination power: 12V - 2W (optional 24V - 2W)
- Front protection class: IP64 (DIN 40050)
- Rear protection class: IP42 (DIN 40050)
- Operating temperature: -20°C to +70°C
- Lens: Single anti-glare
- Housing: Plastic flame-retardant
Compatibility and Application:
- Designed for automotive and industrial engine performance monitoring
- Compatible with alternator W terminal or ignition terminal 1 for RPM signal
- Ideal for applications requiring precise RPM measurement and customization
Benefits:
- Provides accurate RPM monitoring for optimal engine performance
- Compact design ensures seamless installation in various dashboards
- Durable construction with UV, ozone, and water resistance for long-lasting use
- Programmable settings allow customization for specific needs
- Multiple illumination options enhance visibility in diverse conditions
- Certified to CE standards and EMC-tested for reliability and compliance
