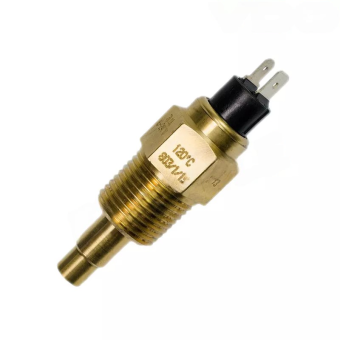

VDO 323-803-004-011D - Coolant Temperature Sender 120°C - M14

Article VDO.323803004011D

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The VDO 323-803-004-011D is a coolant temperature sender designed for accurate temperature monitoring in automotive and industrial applications. It features a measuring range of +40°C to +120°C, operates between -40°C and +150°C, and is compatible with various mediums like coolant, water, air, and oils. The sensor has a thread size of M14 x 1.5, operates on 6-24 V DC, and includes a warning contact that activates at 105°C. With precise electrical and mechanical specifications, it ensures reliable performance and safety in critical systems.

Description
Ask a Question

VDO 323-803-004-011D - Coolant Temperature Sender 120°C - M14

The VDO 323-803-004-011D is a highly reliable coolant temperature sender, designed to ensure accurate temperature monitoring in various automotive and industrial applications. This sensor is ideal for maintaining optimal performance by providing precise temperature readings and warning signals when needed.

Key Specifications:
- Temperature Measuring Range: +40°C to +120°C
- Operating Temperature Range: -40°C to +150°C
- Thread Size: M14 x 1.5
- Sender Element Length + Thread (L): 40 mm
- Sensor Diameter: 10.8 mm
- Torque: 20 Nm
- Temperature Medium Compatibility: Coolant, Water, Air, Engine Oil, Transmission Oil, Fuel
Electrical Features:
- Operating Voltage: 6 - 24 V DC
- Resistor Range: 287.4 - 22.7 Ohm
- Temperature Sensor Signal: Single-Pole Common Ground
- Warning Contact: Activates at 105 ± 3°C
- Warning Contact Switching Capacity: 1.2 - 3 Watt (non-inductive)
- Warning Contact Features: Closes with rising temperature
