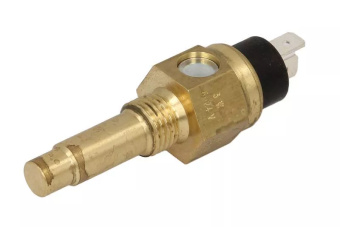

VDO 323-803-004-001D - Coolant Temperature Sender 120°C - M14

Article VDO.323803004001D

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The VDO 323-803-004-001D Coolant Temperature Sender is a reliable sensor designed to measure temperatures ranging from +40°C to +120°C. It operates within a wide temperature range, supports voltages from 6 to 24 V DC, and is compatible with various fluids including coolant, engine oil, and fuel. With an M14 x 1.5 thread, a 40 mm length, and a torque of 20 Nm, it offers precise monitoring, including a warning contact that activates at 100°C ± 2.5°C, making it suitable for diverse applications.

Description
Ask a Question

VDO 323-803-004-001D - Coolant Temperature Sender 120°C - M14

The VDO 323-803-004-001D is a precise and reliable coolant temperature sender designed for various applications. With a focus on durability and accuracy, this sensor is ideal for monitoring the temperature of different mediums such as coolant, water, air, engine oil, transmission oil, and fuel. It ensures optimal performance in a wide range of operating conditions.

Specifications
- Temperature Measuring Range: +40 °C to +120 °C
- Minimum - Maximum Operating Temperature: -40 °C to +150 °C
- Thread: M14 x 1.5
- Sender Element Length + Thread (L): 40 mm
- Sensor Diameter: 10.8 mm
- Torque: 20 Nm
Electrical Features
- Operating Voltage: 6 - 24 V DC
- Resistor Range: 287.4 - 22.7 Ohm
- Temperature Sensor Signal: Single-Pole Common Ground
Warning Contact
- Activation Temperature: 100 °C ± 2.5 °C
- Switching Capacity: 1.2 - 3 Watt Non-Inductive
- Contact Feature: Closes with Rising Temperature
