VDO.310040015G
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
Our managers will contact you and clarify the terms of the order
The VDO 310-040-015G gauge measures gear oil temperature from +50°C to +150°C with a 52mm diameter and a 67.5mm installation depth. It connects via AMP Male blade connectors and uses a VDO NTC Thermistor for sensor signal transmission. The gauge can be mounted with a bracket, and its locking height ranges from 0.5mm to 8mm. It does not support Spinlock nut mounting or flushmount options.
- Description
- Ask a Question
-

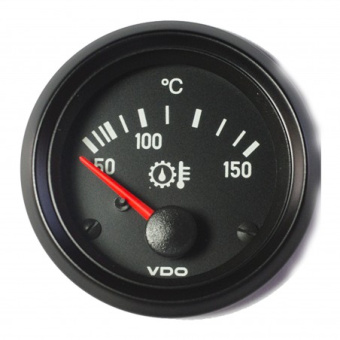

VDO 310-040-015G - Cockpit International Gear Oil Temperature 150°C 52mm 24V
The VDO 310-040-015G is a precision gauge designed for monitoring gear oil temperature with high accuracy. It features a 52mm (2 1/16 Inch) installation diameter and a 59.25mm (2 1/3 Inch) outside diameter. The installation depth required is 67.5mm, and it can be secured with a bracket with a locking height of 0.5mm to 8mm, though it does not support Spinlock nut mounting. This gauge does not have a flushmount option.
Functionality-wise, the gauge covers a gear oil temperature range from +50°C to +150°C. It utilizes a VDO NTC Thermistor with a sensor signal transmission range of 322.8 - 18.6 Ohms. Although VDO does not specify the accuracy, the gauge connects via AMP Male blade connectors, with three connectors for the main signal and two for illumination, each sized 6.3 x 0.8mm.
-
