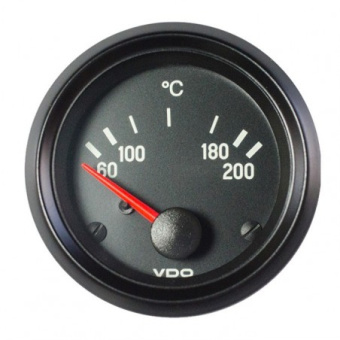

VDO 310-040-004G - Cockpit International Oil Temperature 200°C 52mm 24V

SKU: VDO 310040004G

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The VDO 310-040-004G Cockpit International Oil Temperature Gauge is a high-quality instrument designed to measure oil temperatures from +60°C to +200°C, making it ideal for engine monitoring in heavy-duty applications. With a robust 24V DC operating voltage, this gauge ensures precise readings with its clear black dial and red backlight. It features reliable illumination in white, green, and red for visibility in any lighting condition. Built to withstand harsh environments, the gauge has IP64 front protection and IP42 rear protection, offering ozone and UV resistance. Perfect for monitoring oil temperature in vehicles and machinery, it provides crucial data to prevent overheating and maintain optimal engine performance. CE certified and manufactured with durable flame-retardant plastic, this VDO gauge guarantees reliability and longevity.

Description
Ask a Question

VDO 310-040-004G - Cockpit International Oil Temperature 200°C 52mm 24V

Key Features:
- Measures oil temperature with a range from +60°C to +200°C
- Operating voltage of 24V DC, designed for heavy-duty applications
- Clear black dial with red backlight for easy visibility
- Deflection angle of 90° for precise temperature readings
- Illumination options include white, green, and red floodlight for clear display
- Robust plastic housing with anti-glare lens for durability
- Front protection class IP64 (ozone and UV proof) and rear protection class IP42 for enhanced reliability in harsh environments
Specifications:
- Temperature Range: +60°C to +200°C
- Operating Voltage: 21.5 - 30V DC
- Current Consumption Without Illumination: 106 mA
- Sensor Signal Transmission: VDO NTC Thermistor (482.5 - 14.3 Ohm)
- Dial Illumination: Floodlight 24V - 2 Watt (White, Green, Red)
- Dial Colour: Black
- Pointer: Red backlight
- Lens: Single plastic anti-glare
- Bezel: Triangular black (threaded ring)
- Housing: Flame-retardant plastic
- Installation Hole Diameter: 52 mm (2 1/16 inches)
- Outside Diameter: 59.25 mm (2 1/3 inches)
- Installation Depth: 67.5 mm
- IP Front Protection Class: IP64 (DIN 40050)
- IP Rear Protection Class: IP42 (DIN 40050)
- Operating Temperature Range: -30°C to +85°C
- CE Certified
- Nominal Position: NL 0 to NL 90 (DIN 16257)
- Mechanical Shock: Max 1G - 25Hz - 2000Hz (8 hours)
- EMC Test: According to EN 13309 and ISO 13766
- Country of Origin: Malaysia
Compatibility and Application:
- Designed for use in VDO engine monitoring systems
- Ideal for monitoring oil temperature in various vehicles and machinery
- Suitable for applications requiring precise temperature control of engine oil
- Compatible with 24V DC power supply for heavy-duty operations
Benefits:
- Accurate oil temperature readings help maintain optimal engine performance
- IP64-rated front and IP42-rated rear ensure reliable operation even in harsh conditions
- Red backlight pointer and clear dial illumination improve readability under all lighting conditions
- Wide operating temperature range and reverse polarity protection enhance durability
- CE certification guarantees compliance with industry standards
- Reliable temperature control, preventing potential damage to engine systems due to overheating
