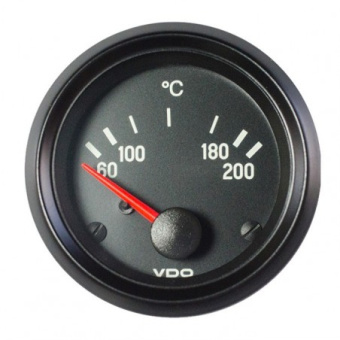

VDO 310-030-004G - Cockpit International Oil Temperature 200°C 52mm 12V

SKU: VDO 310030004G

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The VDO 310-030-004G is a high-performance oil temperature gauge designed for precise monitoring of engine temperatures. With a temperature range of +60°C to +200°C, it provides accurate readings for various applications in automotive, marine, and industrial systems. The gauge features a sleek black dial with a red backlit pointer, offering clear visibility in all conditions. It includes customizable floodlight illumination options in white, green, and red, ensuring superior readability in low-light environments. The gauge is compatible with VDO NTC Thermistor sensors (482.5 - 14.3 Ohm) and operates with a 12V DC power supply. With an IP64-rated front for protection against dust, water, and UV exposure, it’s built for reliability in harsh environments. The gauge’s robust plastic lens is anti-glare, ensuring optimal viewing clarity. It is CE-certified and includes a standard black triangular bezel, which can be interchanged with a special tool.

Description
Ask a Question

VDO 310-030-004G - Cockpit International Oil Temperature 200°C 52mm 12V

Key Features:
- Oil temperature gauge with a range of +60°C to +200°C for precise monitoring of engine performance
- Designed with a sleek black dial and red backlit pointer for enhanced readability
- Floodlight illumination options in white, green, and red for superior visibility in low-light conditions
- Compatible with VDO NTC Thermistor signal (482.5 - 14.3 Ohm) for accurate oil temperature measurements
- Durable anti-glare lens ensures clear viewing, even in challenging environments
- IP64-rated front protection for resistance to dust, water, ozone, and UV exposure
- Standard black triangular bezel design, interchangeable with special tool required for installation
- CE certified, meeting international standards for safety and electromagnetic compatibility
Specifications:
- Manufacturer: VDO
- Part Number: 310-030-004G
- Product Type: Oil Temperature Gauge
- Measurement Range: +60°C to +200°C
- Signal Input: Analog (VDO NTC Thermistor 482.5 - 14.3 Ohm)
- Operating Voltage: 11 - 16 Volt DC
- Current Consumption: 106 mA (without illumination)
- Installation Dimension: 52 mm (2 1/16 Inch) hole size
- Outside Diameter: 59.25 mm (2 1/3 Inch)
- Installation Depth: 67.5 mm
- Bezel Model: Black triangle (interchangeable with special tool)
- Lens: Single plastic with anti-glare coating
- Dial Illumination: Floodlight with options for white, green, and red
- Protection Class:
  - Front: IP64 (DIN 40050) - Ozone and UV proof
  - Rear: IP42 (DIN 40050)
- Operating Temperature: -30°C to +85°C
- Connector Type: AMP Male blade connectors (6.3 x 0.8 mm) for signal and illumination
- Power Supply: 12V DC with reverse polarity protection
- Packaging: VDO Instrument retail
- Country of Origin: Malaysia
- Series: VDO Cockpit International
- Warranty: 2 Years
- Category: Temperature Gauges
Compatibility and Application:
- Applications: Engine monitoring systems for automotive, marine, and industrial use requiring precise oil temperature measurement.
- Signal Input: Analog signal compatible with VDO NTC Thermistor sensors (482.5 - 14.3 Ohm).
Benefits:
- Ensures accurate oil temperature monitoring to prevent engine overheating and ensure efficient operation
- Floodlight illumination in multiple colors enhances visibility in various lighting conditions
- IP64-rated front protection ensures reliable operation in harsh environments, including exposure to dust and moisture
- Interchangeable bezel allows for customization, with a special tool required for installation
- CE-certified and compliant with electromagnetic compatibility standards for safe and reliable performance
- Easy to install with standard 52 mm hole size and included AMP connectors
- Backed by a 2-year warranty for peace of mind and long-term reliability
