The VDO 232-011-017-005D temperature switch activates at 120°C with a ±3°C tolerance and can operate up to 130°C. It features a 1/2-14 NPTF thread, a 29 mm long switch element, and a 10 mm sensor diameter. It operates between 6 to 24 V DC, closes the contact when temperatures exceed 120°C, and supports a maximum of 1.2 to 3 watts for non-inductive loads, with an M4 screw connector.
- Description
- Ask a Question
-

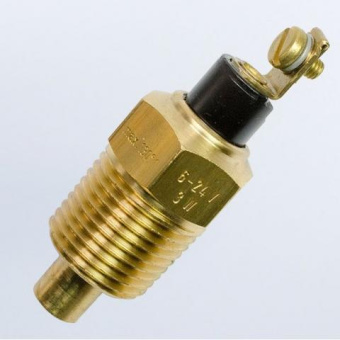

VDO 232-011-017-005D - Temperature Switch 120°C - 1/2-14 NPTF
The VDO 232-011-017-005D is a precise temperature switch designed to activate at 120°C with a tolerance of ±3°C. This robust switch can operate at a maximum temperature of 130°C and features a 1/2-14 NPTF threaded connection for easy installation. Its switch element, including the thread, measures 29 mm in length, and the sensor has a diameter of 10 mm.
In terms of electrical specifications, the temperature switch operates within a voltage range of 6 to 24 V DC. It functions by closing the contact when the temperature exceeds 120°C. The switch provides a single-pole common ground signal and features a slow contact response. The switch can handle a maximum power capacity of 1.2 to 3 watts for non-inductive loads. The connector for the temperature switch is an M4 screw type.
-
