The VDO 232-011-017-004D is a temperature switch that activates at 140°C with a ±10°C tolerance, suitable for temperatures up to 160°C. It features an M14 x 1.5 thread, a 29 mm length including the thread, and a 10 mm sensor diameter. It operates between 6 to 24 V DC, closes the contact when exceeding 140°C, and has a slow response with a maximum non-inductive capacity of 1.2 to 3 watts. The connector is an AMP Male 6.3 x 0.8 mm type.
- Description
- Ask a Question
-

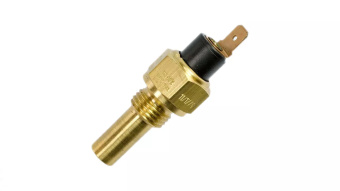

VDO 232-011-017-004D - Temperature Switch 140°C - M14
Discover the VDO 232-011-017-004D Temperature Switch, a reliable component designed for precise thermal regulation. This switch activates at a temperature of 140°C with a tolerance of ±10°C, ensuring accurate performance in various applications.
The maximum operating temperature for this switch is 160°C, and it features an M14 x 1.5 thread for easy installation. The overall length of the switch element, including the thread, is 29 mm, while the sensor diameter measures 10 mm.
Electrical characteristics include an operating voltage range of 6 to 24 V DC. The switch function is to close the contact when the temperature exceeds 140°C, providing a single-pole common ground signal with a slow response time. It supports a maximum non-inductive capacity of 1.2 to 3 watts. The connector is an AMP Male 6.3 x 0.8 mm type.
-
