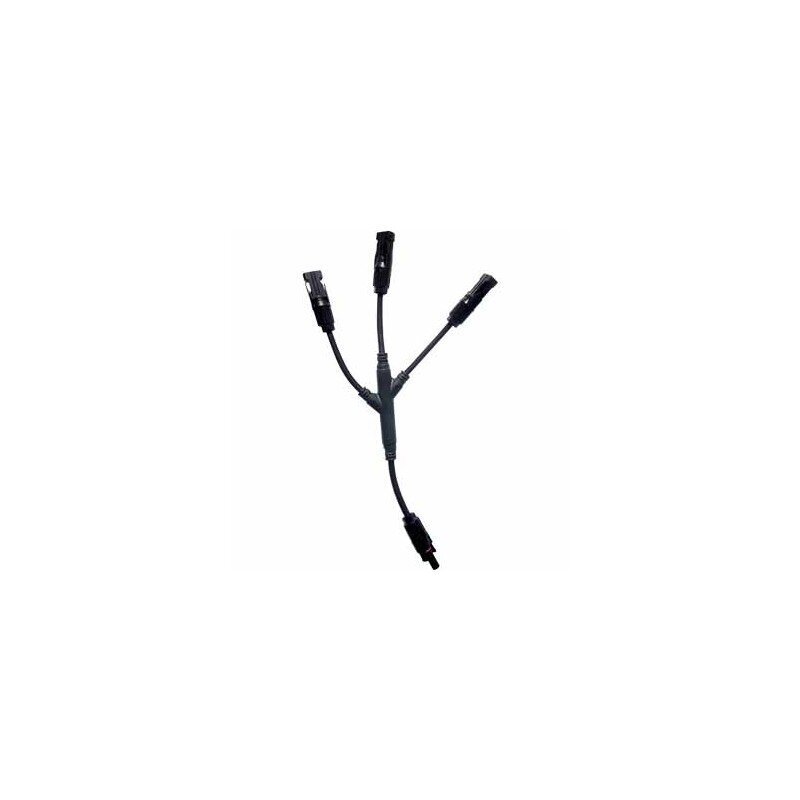

Uniteck parallel connector kit for 3 panels allows up to three photovoltaic modules to be connected in parallel, maintaining system voltage while increasing current output with a 40A waterproof Y-connector system.
- Description
- Ask a Question
-
Uniteck 0163 - Kit Solar Connectors Parallel 3 Panels
Product Overview
Set of solar connectors for 3 panels in parallel designed for fast and efficient photovoltaic connections up to 300W. This kit allows three solar panels to be connected in parallel while maintaining system voltage and optimizing current distribution. Ideal for 12V installations combining multiple panels without energy loss.
The 3-input Y connector system provides a secure and stable link between solar panels and the charge controller. Compatible with 4 to 6mm2 solar cables, it integrates with the UNICABLE SOL range.
Waterproof And Durable Design
Built for outdoor environments, the waterproof connectors ensure long-lasting and stable performance. With a rated current of 40A, the system supports up to three panels in parallel. The housing is UV resistant, waterproof (AD7 immersion rated), and protected with a halogen-free flame-retardant rubber sheath. Operating temperature ranges from -40°C to +90°C.
Installation And Compatibility
The kit installs directly on existing solar cables between panels and the charge controller. It includes male and female connectors for quick assembly. Compatible with UNISUN solar panels using standard connectors and all UNICABLE SOL cables.
Technical Data
Type 3 Panel Parallel Solar Connector Kit Max Power 300W Current Rating 40A Cable Compatibility 4 to 6mm2 Temperature Range -40°C to +90°C Barcode 3760233350163
Brand: Uniteck
-
