ID
1224573
$ 68.10
1-2 weeks delivery time
-
+
The Blue Sea 5056 ST-Blade Water-Resistant Fuse Block provides compact water-resistant circuit protection for ATO/ATC fuses and ATO/ATC-style low profile circuit breakers, rated up to 32V DC with 80A per block and 25A per circuit. It uses tin-plated copper C11000 bus material, supports (1) 8–4 AWG input and (4) 16–10 AWG load wiring, and mounts with clearance for 1/4" (6 mm) screws. The cover includes spare fuse/fastener storage and comes with four write-on circuit labels and 3 wire plugs to maintain the water-resistant rating when fewer than 4 loads are used (fuses and breakers sold separately).
- Description
- Ask a Question
-

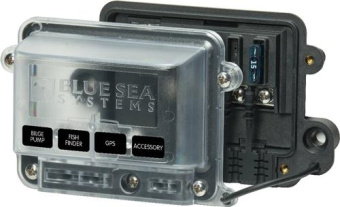

Blue Sea 5056 - ST-Blade Water-Resistant Fuse Block, 32V DC, 80A per Block, 25A per Circuit, IP66
The Blue Sea 5056 ST-Blade Water-Resistant Fuse Block provides water-resistant circuit protection for ATO/ATC fuses and ATO/ATC-style low profile circuit breakers in a compact footprint. The design supports simple wiring with standard tools using standard ring or spade type terminals and accepts a wide range of wire sizes.
Key Features
- Water-resistant circuit protection for ATO/ATC fuses and ATO/ATC-style low profile circuit breakers
- Compact footprint with water-resistant design
- Supports wiring with standard ring or spade type terminals
- Accepts a wide range of wire sizes
- Includes 3 wire plugs to maintain water-resistant rating if less than 4 loads are required
- Nests with other ST-Blade Water-Resistant Fuse Blocks and Water-Resistant 100A Bus Bars to reduce wire
- Tin-plated copper busses and fuse clips
- Includes four write-on circuit labels
- Spare fuse and fastener storage in cover
- Small format standard and custom labels available
- Fuses and circuit breakers sold separately
Specifications
Parameter Value Amperage 80A per block / 25A per circuit Maximum Voltage 32V DC Bus Material Tin-Plated Copper C11000 Mounting Holes Clearance for 1/4" (6 mm) screws Screw Terminal Type #8-32 screws with captive star lock washer Wire Size (Input) (1) 8 AWG to 4 AWG Wire Size (Load) (4) 16 AWG to 10 AWG
Optional Accessories
- Any ATO/ATC Fuses
- Any easyID Fuses
- Any ATO/ATC-Style Low Profile
Regulatory Specifications
- CE Marked
- IP66
Related Products
- 5056100 - ST-Blade Water-Resistant Fuse Block: Manual Cover
- 2356100 - Water-Resistant - 100A Busbar: Manual Cover
- 2356 - Water-Resistant - 100A BusBar
-
