ID
1373791
$ 108.71
1-2 weeks delivery time
-
+
Blue Sea Dual Circuit Plus battery switch allowing independent or combined control of two battery banks, enabling parallel connection in the BOTH position, with silver-plated copper contacts and high current handling up to 350 A continuous for flexible onboard power management.
- Description
- Ask a Question
-

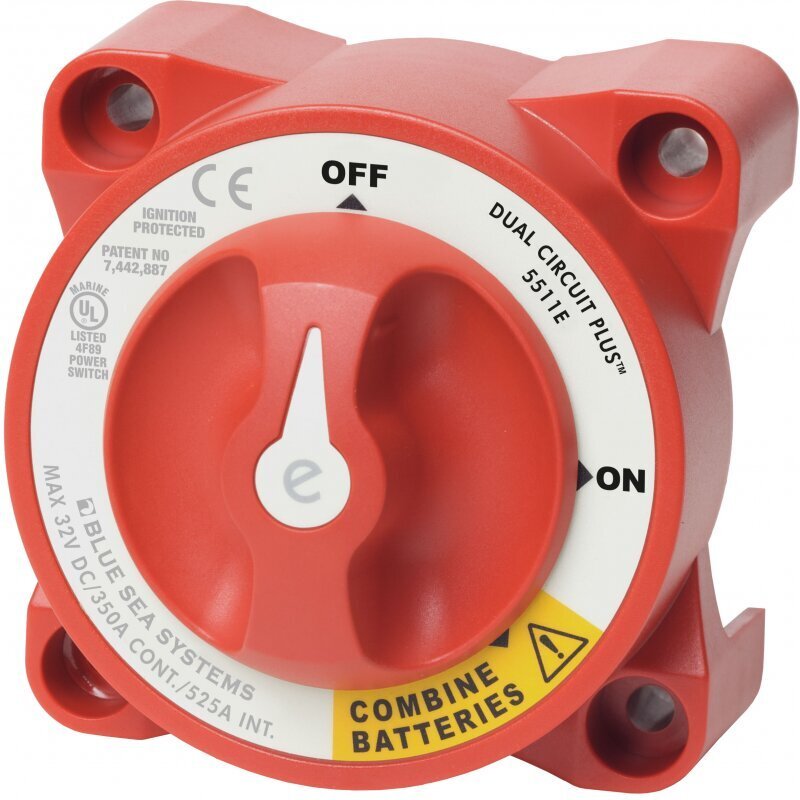

Blue Sea 5511EB - Battery Switches Dual Circuit Plus Series E Bulk
Battery switch designed to control two battery banks either together or independently. It allows simultaneous opening and closing of both circuits or keeps them fully isolated. In the BOTH position, the two battery banks are connected in parallel. Suitable for surface or flush mounting. Built with silver-plated copper contacts for reliable conductivity and durability.
Key Features
Dual circuit control, high current handling, and flexible installation options for marine and industrial electrical systems.
Technical Data
Continuous Rating 350A max Intermittent Rating 525A max Cranking Rating (30 sec) 700A max Voltage 32 V max Contacts Silver-plated copper Mounting Surface or flush Barcode 50632085551181
Brand: Blue Sea
-
