The Blue Sea 5163 ANL Fuse is rated at 750A with a maximum voltage of 80V DC and a 6,000A interrupt capacity at 80V DC. It features silver-plated connector blades for corrosion resistance and a visible blown-fuse indication. Designed for use with Blue Sea Systems ANL fuse blocks and suitable for main DC circuit protection on large battery banks per ABYC interrupt capacity requirements. Weight is 0.08 lb (0.04 kg).
- Description
- Ask a Question
-

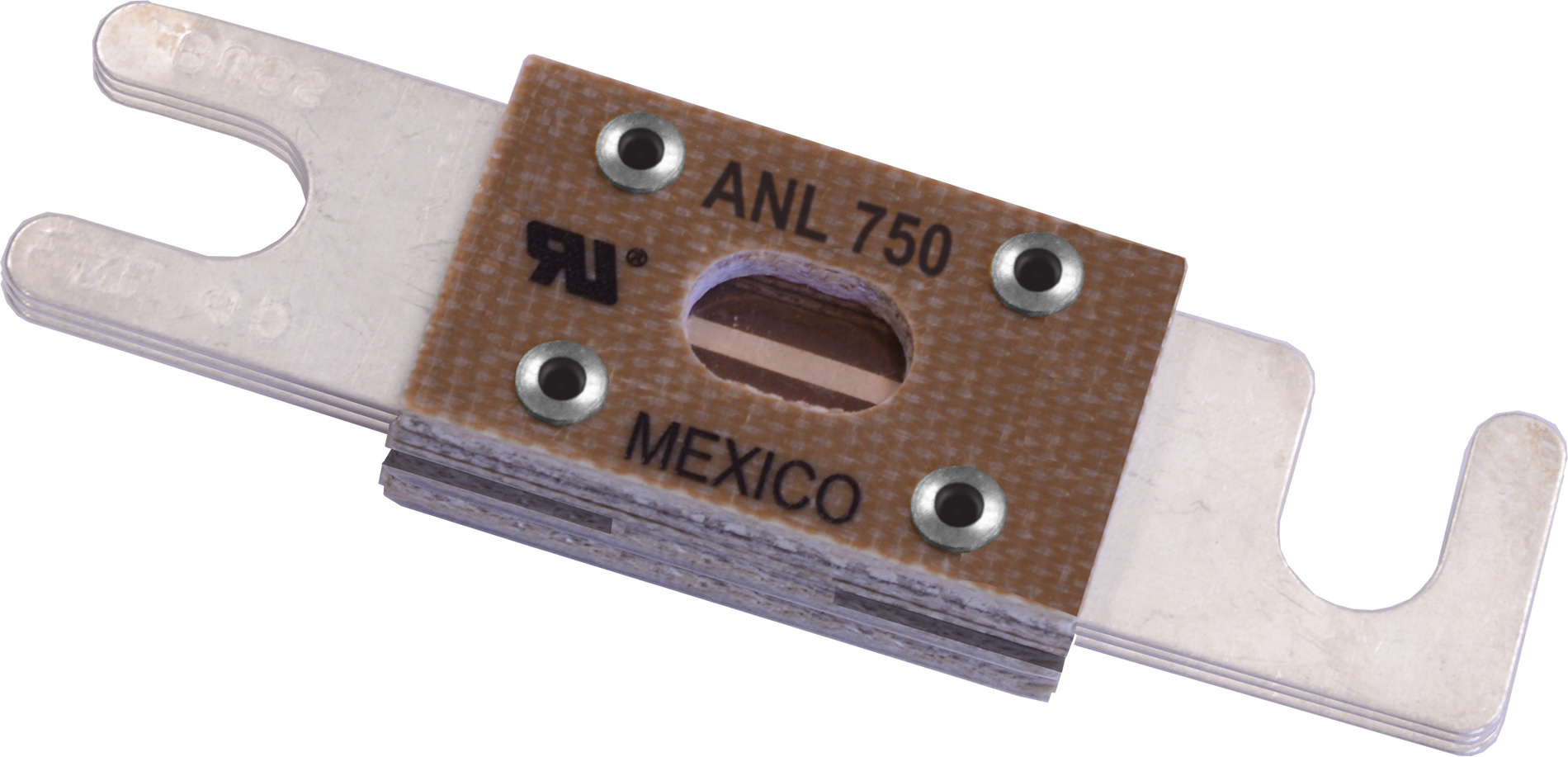

Blue Sea 5163 – ANL Fuse 750A, 80V DC, 6000A AIC
The Blue Sea 5163 is an ANL fuse rated at 750A with a maximum voltage of 80V DC and an interrupt capacity of 6,000A at 80V DC. It is designed for main DC circuit protection on large battery banks and is intended for use with Blue Sea Systems ANL fuse blocks. The fuse features silver-plated connector blades for corrosion resistance and provides visible indication of blown condition.
Design Features
- ANL fuse type
- Silver-plated connector blades for corrosion resistance
- Visible blown fuse indication
- For use with Blue Sea Systems ANL fuse blocks
Electrical Ratings
Amperage 750A Maximum Voltage 80V DC Interrupt Capacity 6000A @ 80V DC
Application Notes
- Suitable for main DC circuit protection on large battery banks
- Interrupt capacity satisfies ABYC requirements for this application (as specified)
Physical Data
Weight 0.08 lb (0.04 kg) -
