ID
1310544
$ 8.03
1-2 weeks delivery time
-
+
The BEP TB-118-6P is a 30A terminal block with 6 isolated connections for AC and DC panel wiring. Phenolic base with 6.3 mm (0.25") screw terminals. Rated up to 300V AC/DC.
- Description
- Ask a Question
-

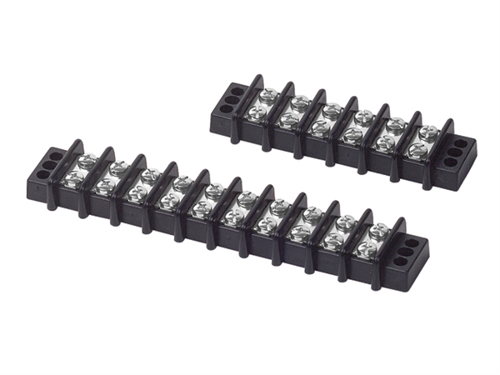

BEP TB-118-6P – Terminal Block 30A, 6 Connections, 6.3 mm Screw, 300V AC/DC
The BEP TB-118-6P terminal block is designed for isolated electrical connections in AC and DC distribution panels. It provides 6 connection points and supports current loads up to 30A, making it suitable for structured wiring and tail connections from panel equipment.
Main Features
- Terminal block with 6 connections
- Rated current: 30A
- Maximum voltage: 300V AC/DC
- Screw terminal size: 0.25" (6.3 mm)
- Base material: phenolic
- Designed for isolated circuit connections
Applications
- AC distribution panels
- DC distribution panels
- Marine electrical systems
- Control and equipment wiring
Construction
The phenolic base provides electrical insulation and mechanical strength. Screw terminals allow secure conductor clamping and straightforward installation in panel and enclosure layouts.
The BEP TB-118-6P is suitable for installations where multiple isolated circuits must be terminated cleanly and securely in AC or DC electrical panels.
-
