The BEP ATC-6W/B is a 6-way ATO/ATC fuse block with screw terminals for compact and organized DC circuit protection. Rated up to 30A per circuit, 100A per block, and 32V DC, it is designed for reliable power distribution in marine and other DC electrical systems. Dimensions: 3.1" x 3.54" x 1.85" (80 x 90 x 47 mm).
- Description
- Ask a Question
-

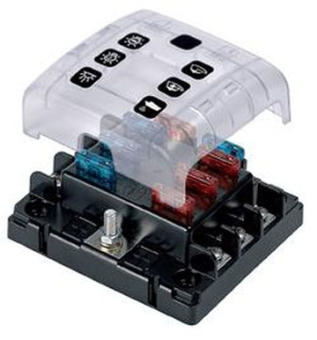

BEP ATC-6W/B – ATO/ATC Fuse Block 6-Way, Screw Terminals, 30A per Circuit, 32V DC
The BEP ATC-6W/B is a compact ATO/ATC fuse block designed to provide clean and organized protection for multiple DC circuits. With a 6-way configuration and screw terminal connections, it is suitable for installations requiring reliable and accessible fuse protection.
Key Features
- Fuse type: ATO / ATC
- Number of circuits: 6
- Connection type: Screw terminals
- Compact design: Easy access to fuses
Electrical Ratings
- Max. current per circuit: 30A
- Max. current per block: 100A
- Max. voltage: 32V DC
Materials
- Base material: Polycarbonate
- Cover material: Polycarbonate
Dimensions
- Overall size (inches): 3.1" x 3.54" x 1.85"
- Overall size (mm): 80 x 90 x 47 mm
-
