The BEP CSP6-PTCW (Article 14576045) is a Contour waterproof DC switch panel in grey, equipped with 6x On/Off switches and designed for reliable control in marine environments. It features advanced overload protection using fixed 20A fuses plus internal 6x9A PTC automatic reset fuses, enabling resettable protection without fuse replacement. The panel includes green LED label backlighting, red indicator lights when switches are on, and a cover plate that conceals mounting screws and provides water drainage, with overall dimensions of 158 x 112 x 64 mm and a maximum 20A load.
- Description
- Ask a Question
-

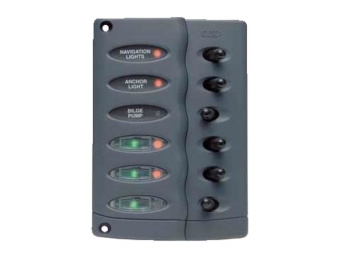

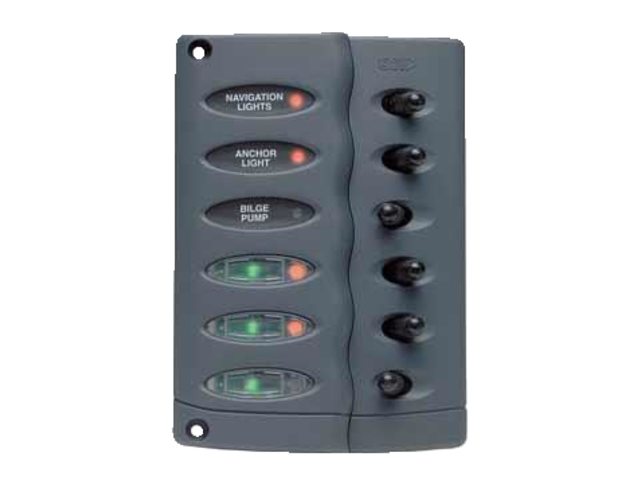

BEP CSP6-PTCW (14576045) – Contour Waterproof DC Switch Panel 6x On/Off, Grey, 158x112x64mm, 6x9A PTC Auto Reset
The BEP CSP6-PTCW is a Contour waterproof DC switch panel designed for marine electrical installations requiring a compact and practical multi-switch control solution. This panel is finished in grey and is supplied with 6x On/Off switches.
Overload Protection
- Fixed 20A fuses
- Internal 6 x 9A PTC automatic reset fuses
Lighting & Indication
- Green LED lights illuminate the labels
- Red indicator light when switches are on
Key Specifications
Article Number 14576045 Manufacturer Number CSP6-PTCW Panel Type Contour Waterproof DC Switch Panel Switches 6 x On/Off Colour Grey Maximum Load 20A Dimensions (L x W x H) 158 mm x 112 mm x 64 mm
Design Features
- Cover plate conceals mounting screws
- Cover plate includes water drainage
-
