The BEP 80-911-0045-00 Wireless Remote Control Kit allows wireless operation of BEP motorized battery switches from up to 250 ft (80 m) away. It can control up to four separate 5A circuits (such as 701-MD / 720-MDO battery switches, anchor light, navigation lights, and courtesy lights). The remote uses a rolling code for added security and supports latching or momentary activation modes. The system requires a 12V supply, and the relay channels are fully isolated, rated 0–32V DC, 5A.
- Description
- Ask a Question
-
BEP 80-911-0045-00 – Wireless Remote Control Kit for Motorized Battery Switches, 80m Range, 4x 5A Circuits (12V)

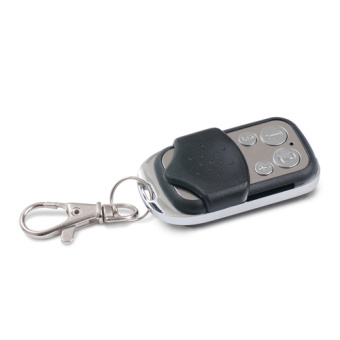

The BEP 80-911-0045-00 Wireless Remote Control Kit allows you to wirelessly operate your BEP motorized battery switches from a distance of up to 250 ft (80 m). It also supports remote operation of up to four separate 5A circuits, making it ideal for battery switching and onboard lighting control.
Key Features
- Part Number: 80-911-0045-00
- Wireless operating range: up to 250 ft (80 m)
- Controls: up to four separate circuits (5A each)
- Typical circuits: 701-MD / 720-MDO battery switches, anchor light, navigation lights, courtesy lights
- Remote security: rolling code technology
- Operating modes: latching (all four circuits the same) or momentary
Electrical Specifications
- Supply requirement: 12V
- Relay channel rating: 0–32V DC, 5A
- Relay channels: fully isolated
Applications
- Remote On/Off control of BEP motorized battery switches
- Controlling battery switches from the dock or a distance
- Remote switching of common onboard lighting circuits
- Installations where battery switches are hard to access (no need to lift hatches)
-
