The BEP 710-140A is a Digital Voltage Sensing Relay (DVSR) for 12V/24V DC systems, designed to automatically charge a second battery bank from a single charge source (alternator or battery charger). It provides 125A continuous and 140A intermittent rating, engages at 13.4V / 26.8V DC, and disengages at 12.8V / 25.6V DC. Dimensions: 69 x 69 x 50 mm. Recommended cable: 8 AWG (8 mm²).
- Description
- Ask a Question
-

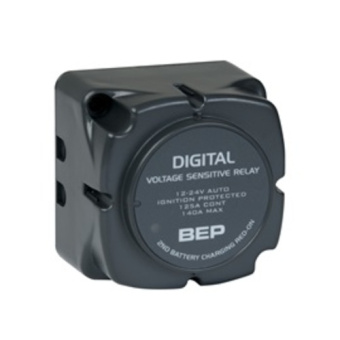

BEP 710-140A – Digital Voltage Sensing Relay (DVSR) 12/24V, 125A Continuous, 140A Intermittent
The BEP 710-140A Digital Voltage Sensing Relay (DVSR) provides an efficient and cost-effective solution for automatic charging of a second battery bank. When the voltage on the first battery bank rises sufficiently, the DVSR engages to allow the second battery bank to charge. When charging stops and voltage falls, the DVSR automatically isolates the battery banks to help keep engine start batteries fully charged.
Key Functions
- Safely charges two or more independent battery banks from one charge source (alternator, battery charger, etc.)
- Charges engine start batteries before combining the auxiliary bank for charging
- Helps protect start batteries from being flattened by domestic loads
- Isolates electronics from harmful electrical surges from starter motors
- Simple 3-wire installation (alternator wiring remains intact)
- No voltage drop compared with diode isolators
- Ignition protected
- Surface or panel mountable
Digital Technology Features
- Multi-voltage: automatically selects between 12V and 24V DC operation
- Very low standby power consumption (<2mA in standby), and improved efficiency vs analog models
- Remote sensing circuitry supports optional ignition switch connection
- Optional remote sensing storage mode can provide zero power consumption when engine is off
- Remote status LED output option
Specifications
Part Number 710-140A OEM Number 710-140A-B Dimensions (L x W x H) 69 x 69 x 50 mm (2.75" x 2.75" x 2") System Voltage 12/24V DC Continuous Rating 125A Intermittent Rating 140A Engages At 13.4V / 26.8V DC Disengages At 12.8V / 25.6V DC Recommended Cable 8 AWG (8 mm²)
How It Works (12V example)
- Battery banks remain isolated when charging begins
- When charging battery voltage reaches 13.4V, the DVSR engages and combines banks for charging
- When voltage drops below 12.8V, the DVSR disengages and isolates the banks again
-
