SKU:
CN AC-A2K-SBN-2
€ 242,67
1-2 weeks delivery time
-
+
The Self-Contained Boat Network - 8-way from Actisense offers an efficient solution for NMEA 2000® networks with eight integrated T-pieces. The built-in termination resistors further reduce installation complexity, and the robust materials ensure reliable, high-performance connections in challenging marine conditions.
- Description
- Ask a Question
-

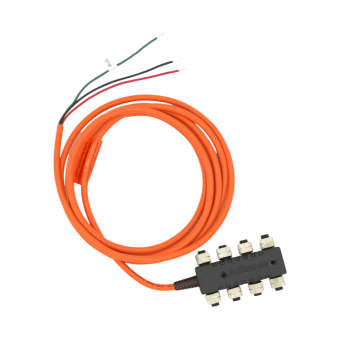

Self-Contained Boat Network - 8-way
Optimize your NMEA 2000® network installations with the Self-contained Boat Network (SBN) from Actisense. This product offers the convenience of eight T-pieces in one integrated unit, simplifying installation and saving both time and space. The built-in termination resistors further enhance these savings, eliminating the need for additional components.
- Electrical
- Rated Current: 3 A
- Rated Voltage: 60 V (AC/DC)
- Internal Termination Resistors: 2 x 120Ω 250mW
- Mechanical
- Female Contact: Phosphor bronze, gold plated
- Contact Carrier: PA66 (30% Glass filled), black
- Contact Polarisation: Standard M12 - "A" - polarisation
- Mating Thread: M12
- Screw Cap: Brass, nickel plated
- O-Ring Seal: Rubber, black
- Housing: TPU (Halogen Free) over Epoxy filled PBT housing
- Flammability Rating: UL94 V-0
- Internal Housing Shield: Copper foil
- Cable Jacket Material: 0.8mm Nom. PVC, orange
- Cable Outer Diameter: 6.8mm
- Cable Length: 3m
- Wire Length: 150mm (10mm stripped and tinned)
- Wire Jacket: PVC, Red & Black
- Wires: 16 AWG (stripped and tinned)
- Drain: 18 AWG (34 strand tinned copper)
- Cable Shield: Al-mylar
- Weight: 410g
- Electrical
-
