SKU:
CN AC-A2K-TER-M
€ 23,55
1-2 weeks delivery time
-
+
The NMEA 2000 Micro Terminator Male is an essential component for NMEA 2000 networks, ensuring signal integrity with its internal termination resistors. It is built to withstand harsh marine environments and is certified with NMEA 2000 approval, providing reliable, long-lasting performance with an IP67 protection rating.
- Description
- Ask a Question
-

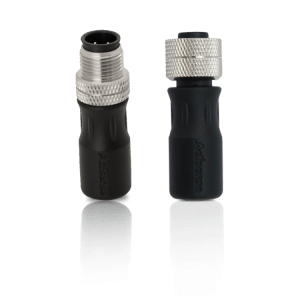

NMEA 2000 Micro Terminator Male
Designed to withstand harsh marine environments, Actisense terminators ensure optimal performance and easy installation. Each NMEA 2000 installation requires two termination resistors—one at each end of the backbone—for proper operation and signal integrity.
- Electrical:
- Rated Voltage (power pair): 60V DC
- Rated Current: 4A
- Internal Termination Resistors: 120 Ω ± 1% 500mW
- Mechanical:
- Male Contact (TER-M): Brass, gold plated
- Female Contact (TER-F): Phosphor bronze, gold plated
- Contact Carrier: PA66 (30% Glass filled), black
- Contact Polarisation: Standard M12 -“A”- polarisation
- Mating Thread: M12
- Screw Cap: Brass, nickel plated
- O-Ring Seal: Rubber, Black
- Housing: PVC, black
- Weight: 15g
- Approvals and Certifications:
- NMEA 2000 Approved
- RoHS Compliant
- UL Certified (UL1277)
- Protection:
- IP67 (when mated)
- Temperature Range:
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -40°C to +85°C
-
