SKU:
CN AC-A2K-TER-F
€ 23,55
1-2 weeks delivery time
-
+
The NMEA 2000 Micro Terminator Female ensures signal integrity by providing proper termination at each end of the network. Designed to meet marine environmental standards, it features a brass male contact, gold-plated connectors, and is certified for use in NMEA 2000 installations with an IP67 rating for durability.
- Description
- Ask a Question
-

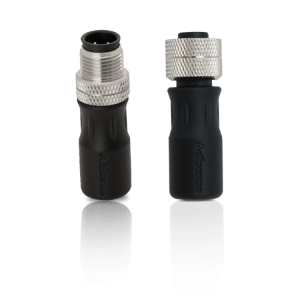

NMEA 2000 Micro Terminator Female
The NMEA 2000 Micro Terminator Female is designed to withstand the demanding marine environment while ensuring proper operation and signal integrity. Each NMEA 2000 installation requires two termination resistors, placed at each end of the backbone.
- Electrical: Rated Voltage (power pair): 60V DC, Rated Current: 4A, Internal Termination Resistors: 120 Ω ± 1% 500mW
- Mechanical: Male Contact (TER-M): Brass, gold plated, Female Contact (TER-F): Phosphor bronze, gold plated
- Contact Carrier: PA66 (30% Glass filled), black
- Contact Polarisation: Standard M12 - “A”- polarisation
- Mating Thread: M12
- Screw Cap: Brass, nickel plated
- O-Ring Seal: Rubber, Black
- Housing: PVC, black
- Weight: 15g
- Approvals and Certifications: NMEA 2000 Approved, RoHS Compliant, UL Certified (UL1277)
- Protection: IP67 (when mated)
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -40°C to +85°C
-
