SKU:
CN AC-A2K-T-MFF
€ 43,52
1-2 weeks delivery time
-
+
The Micro T-Piece provides secure and easy connections for NMEA 2000 networks with two female connectors and one male connector. Designed with high-quality materials, it is compatible with Actisense NMEA lite cable assemblies and ensures reliable electrical and mechanical performance in demanding environments.
- Description
- Ask a Question
-

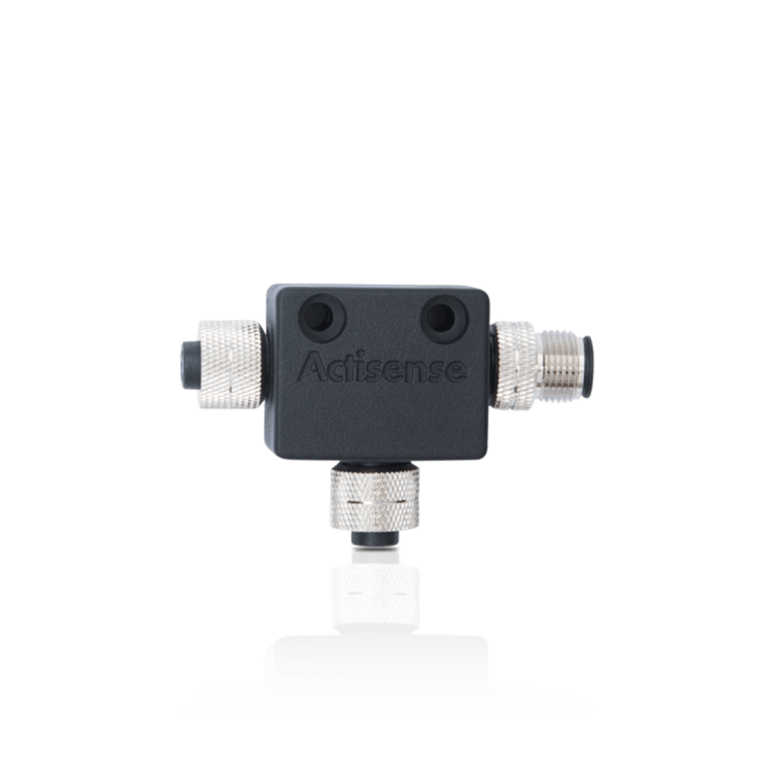

Micro T-Piece
The Micro T-Piece is a high-quality, engineered connector designed to ensure secure and easy connections. This unique T-piece features two female connectors and one male connector, making it compatible with Actisense NMEA lite cable assemblies, even when field-fit connectors are used.
- Electrical: Rated Current: 4A, Rated Voltage: 60VDC
- Mechanical: Male Contact: Brass, gold plated, Female Contact: Phosphor bronze, gold plated
- Contact Carrier: PA66 (30% Glass filled), black
- Contact Polarisation: Standard M12 - “A”- polarisation
- Mating Thread: M12
- Screw Cap: Brass, nickel plated
- O-Ring Seal: Rubber, black
- Housing: PVC, black
- Weight: 47g
-
