Quick DP3 FSDP31524010A00 is a 1500W 24V low profile vertical windlass with stainless steel base, single gypsy for 10 mm chain and 16 mm rope, IP67 motor and free-fall system, suitable for boats 12–15 m with 29.7 m/min recovery and 20.4 kg weight.
- Description
- Ask a Question
-

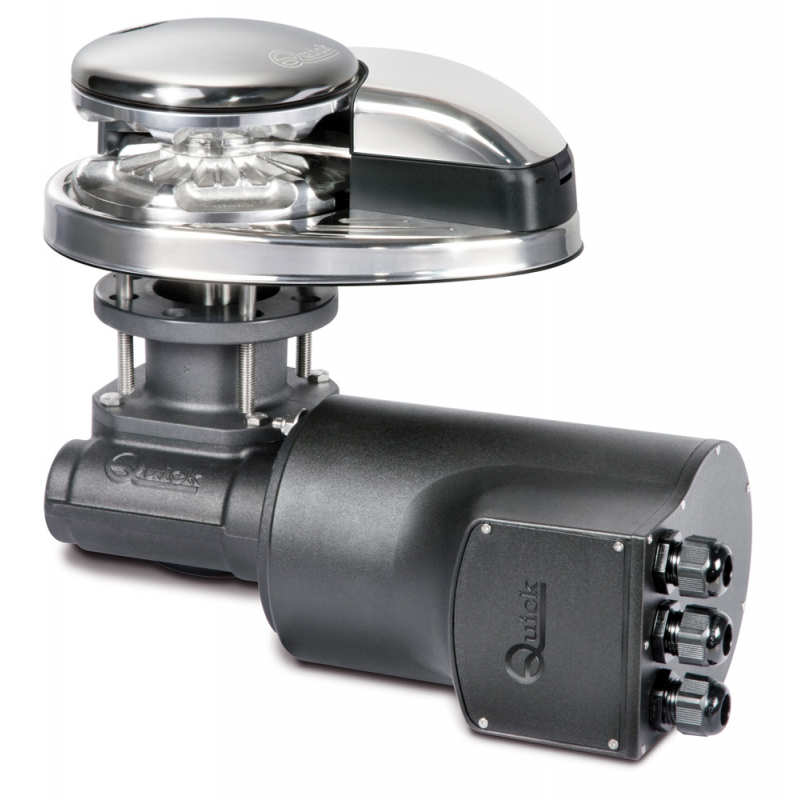

Quick FSDP31524010A00 - DP3 Low Profile Vertical Windlass 1500W 24V Gypsy 10mm
The Quick DP3 low profile vertical windlass is built with an AISI 316 stainless steel base and designed for rope and chain handling on a single gypsy system. It features a manual free-fall system, pressure lever, inspection lid, IP67 watertight motor, and anodized aluminum gearbox. Supplied complete with control box and handle.
Key Features
- Low profile vertical windlass
- AISI 316 stainless steel base
- Single gypsy rope and chain system
- Manual free-fall system
- Pressure lever and inspection lid included
- IP67 watertight motor
- Anodized aluminum gearbox
- Complete with control box and handle
Technical Data
SKU 0307045 Drum No Recommended Boat Length 12-15 m Deck Thickness 30/50 mm Power 1500 Watt - 24 Volt Instant Pull Max 1100 kg Chain Size 10 mm Rope Size 16 mm Recovery Speed 29.7 mt/min Weight 20.4 kg Barcode 8057090065855
Brand: Quick
-
