Quick FSDP20512006A00 DP2 500W 12V is a low profile vertical windlass with stainless steel base, single gypsy for rope and chain, integrated chain counter sensor, manual free-fall system and IP67 motor, suitable for boats 5–9 m, 6 mm chain.
- Description
- Ask a Question
-

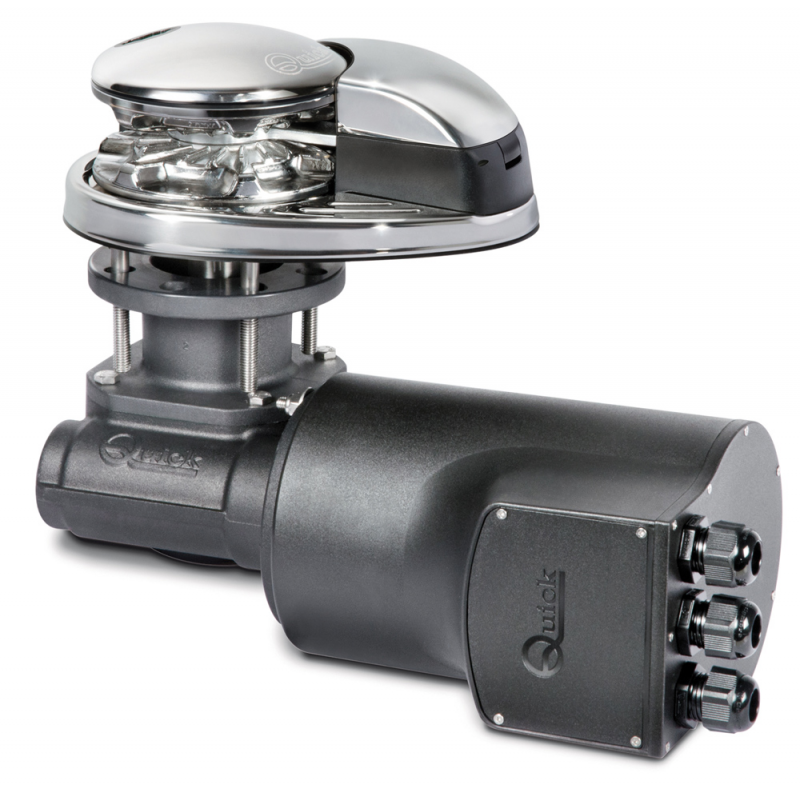

Quick FSDP20512006A00 - DP2 Low Profile Vertical Windlass 500W 12V Gypsy 6mm
The Quick DP2 low profile vertical windlass is manufactured with an AISI 316 stainless steel base and supports rope and chain operation on a single gypsy. The system includes an integrated sensor and magnet for chain counter compatibility, manual free-fall system, pressure lever, inspection lid, IP67 watertight motor, and anodized aluminum gearbox. Delivered complete with control box and handle.
Key Features
- Low profile vertical windlass
- AISI 316 stainless steel base
- Single gypsy for rope and chain
- Integrated sensor and magnet for chain counter
- Manual free-fall system
- Pressure lever and inspection lid included
- IP67 watertight motor
- Anodized aluminum gearbox
- Complete with control box and handle
Technical Data
Product Code 0307008 Drum No Recommended Boat Length 5-9 m Deck Thickness 20/30 mm Power 500 Watt - 12 Volt Instant Pull Max 660 kg Chain Size 6 mm Rope Size 12 mm Recovery Speed 28.9 mt/min Weight 9.8 kg Barcode 8057090226072
Brand: Quick
-
