ID
1317047
$ 1,173.51
1-2 weeks delivery time
-
+
This brushless permanent magnet motor, model B3, operates at 24 V delivering 0.3 kW (0.4 hp) power with a torque of 1.9 Nm and speed of 1400 rpm. It features a 30 mm long, 14 mm diameter shaft and draws 15.2 A current, protected by an IP55 rating for durability.
- Description
- Ask a Question
-

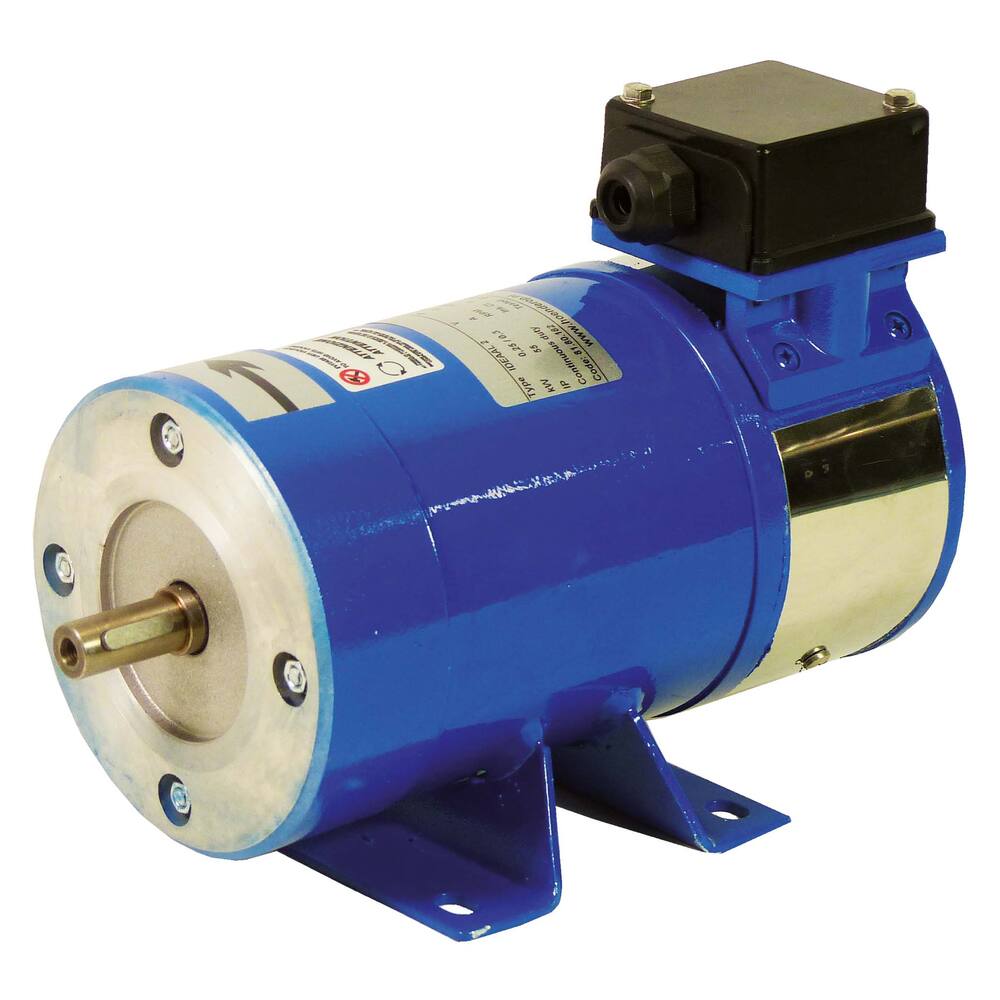

DC Electric Motor Ideaal 0,3KW IP55 24V
This brushless permanent magnet motor, model B3, delivers reliable performance with a torque of 1.9 Nm and a speed of 1400 rpm. Designed for demanding applications, it features a 30 mm shaft length and a 14 mm shaft diameter, operating at 24 V with 15.2 A amperage.
- Motor type: brushless permanent magnet
- Model: B3
- Torque: 1.9 Nm
- Speed: 1400 rpm
- Shaft length: 30 mm
- Shaft diameter: 14 mm
- Power: 0.4 hp / 300 W
- Voltage: 24 V
- Amperage: 15.2 A
- Protection class: IP55
- Product code: 81.80.182
-
