ID
1354154
$ 12.13
1-2 weeks delivery time
Type:
- M6x100
- M8x125
- M10x150
- M12x175
- M14x200
Diameter, mm:
- 6
- 8
- 10
- 12

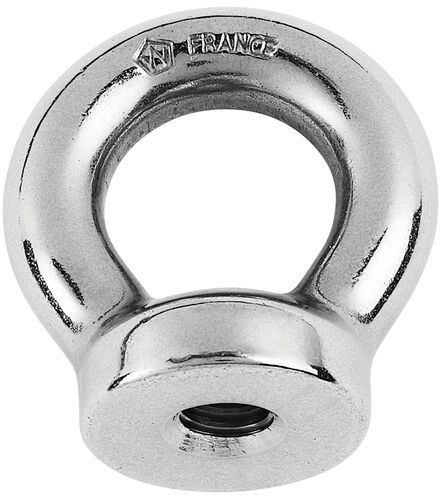

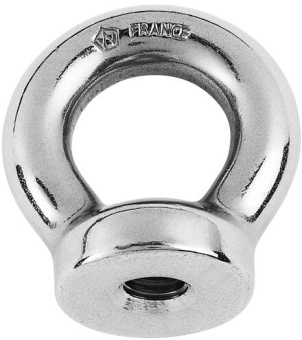

The Wichard Eye Nuts are forged one-piece eye nuts manufactured from 316L stainless steel for high strength and corrosion resistance in marine environments. Designed for use with metric threaded studs or rods, these eye nuts provide a secure lifting or attachment point for rigging, deck fittings, and mechanical assemblies. The series includes sizes from M6 to M14 with eye diameters from 6 mm to 12 mm, offering breaking loads from 1500 kg to 9000 kg depending on the model. All units feature forged construction for improved mechanical strength and reliability.
- Description
- Ask a Question
-
Wichard 316L Stainless Steel Eye Nuts – Forged Metric Eye Nuts M6–M14
The Wichard Eye Nuts are heavy-duty forged attachment points designed for lifting, rigging, and securing equipment in marine environments. Manufactured from 316L stainless steel, these eye nuts provide excellent corrosion resistance and long-term durability when exposed to saltwater and harsh outdoor conditions.
Each eye nut is forged in a single piece, ensuring superior strength compared to welded components. The eye allows secure attachment of shackles, hooks, ropes, or lifting equipment while the metric threaded section enables installation onto threaded rods or bolts.
These eye nuts are commonly used in marine rigging systems, deck hardware installations, lifting applications, and structural fastening where a reliable anchoring point is required.
Key Features
- Forged one-piece construction
- Manufactured from 316L stainless steel
- High corrosion resistance for marine environments
- Metric threaded mounting
- Suitable for lifting and rigging applications
- Compatible with shackles, hooks, and ropes
Available Variants
Wichard Code Thread (A) B C D E Breaking Load Weight 6333 M6 × 100 13 mm 27 mm 6 mm 17 mm 1500 kg 22 g 6334 M8 × 125 13 mm 27 mm 6 mm 17 mm 2200 kg 20 g 6344 M8 × 125 17 mm 36 mm 8 mm 22 mm 3000 kg 51 g 6345 M10 × 150 17 mm 36 mm 8 mm 22 mm 4500 kg 49 g 6355 M10 × 150 22 mm 46 mm 10 mm 28 mm 4800 kg 99 g 6356 M12 × 175 22 mm 46 mm 10 mm 28 mm 5200 kg 95 g 6366 M12 × 175 27 mm 56 mm 12 mm 34 mm 7000 kg 175 g 6367 M14 × 200 27 mm 56 mm 12 mm 34 mm 9000 kg 171 g
Material
- 316L stainless steel
-
