ID
1358669
$ 34.66
1-2 weeks delivery time
Diameter, mm:
- 4
- 5
- 6
- 8
Length, mm:
- 20
- 30
- 40
- 50
- 60
- 70
Item:
- 6 pcs
- 12 pcs
- 18 pcs
- 24 pcs
- 36 pcs
- 48 pcs
- 72 pcs
Talamex DIN 966 Raised Phillips Head Bolts are manufactured from AISI 316 stainless steel for high corrosion resistance in marine and outdoor environments. Designed with a Phillips drive and raised countersunk head, they provide secure fastening with a clean finish. Available in sizes from M4 to M8 with lengths from 20 mm to 70 mm, supplied in 6 blisters per package.
- Description
- Ask a Question
-

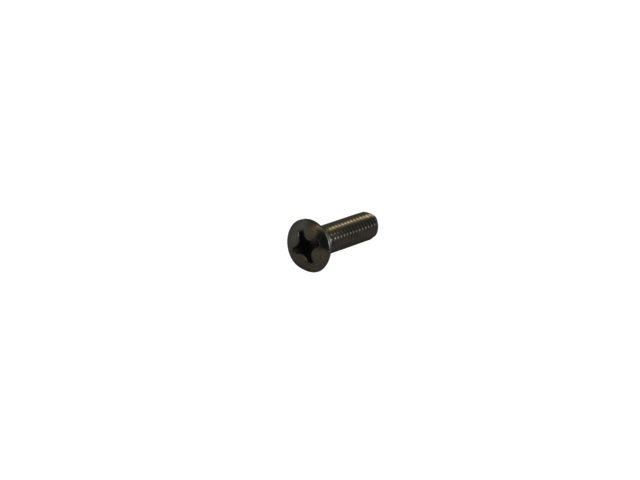

Talamex DIN 966 Raised Phillips Head Bolts AISI 316 Stainless Steel
The Talamex DIN 966 Raised Phillips Head Bolts are designed for reliable fastening in applications requiring a flush or slightly raised finish. Manufactured from AISI 316 stainless steel, these bolts offer excellent corrosion resistance, making them ideal for marine, outdoor, and industrial environments.
The DIN 966 standard defines a raised countersunk (oval) head combined with a Phillips drive, allowing easy installation while maintaining a clean and professional appearance.
Key Features
- Raised countersunk (oval) head according to DIN 966
- Phillips drive for easy installation
- Made from AISI 316 stainless steel
- Excellent corrosion resistance
- Suitable for marine and outdoor use
- Supplied in blister packaging
Technical Specifications
Brand Talamex Product Type Raised Phillips head bolt Standard DIN 966 Material AISI 316 stainless steel Blisters per Package 6
Available Variants
Article Number Size Content per Blister Total per Package 40.101.140 M4 x 20 12 72 pcs 40.101.141 M4 x 30 8 48 pcs 40.101.142 M4 x 40 4 24 pcs 40.101.143 M4 x 50 4 24 pcs 40.101.144 M4 x 60 3 18 pcs 40.101.145 M5 x 20 8 48 pcs 40.101.146 M5 x 30 6 36 pcs 40.101.147 M5 x 40 4 24 pcs 40.101.148 M5 x 50 4 24 pcs 40.101.149 M5 x 60 3 18 pcs 40.101.150 M5 x 70 2 12 pcs 40.101.151 M6 x 20 6 36 pcs 40.101.152 M6 x 30 4 24 pcs 40.101.153 M6 x 40 4 24 pcs 40.101.154 M6 x 50 3 18 pcs 40.101.155 M6 x 60 2 12 pcs 40.101.156 M6 x 70 2 12 pcs 40.101.157 M8 x 30 2 12 pcs 40.101.158 M8 x 40 2 12 pcs 40.101.159 M8 x 50 1 6 pcs 40.101.160 M8 x 60 1 6 pcs 40.101.161 M8 x 70 1 6 pcs
Applications
- Marine installations
- Deck hardware and fittings
- Outdoor assemblies
- General fastening applications
-
