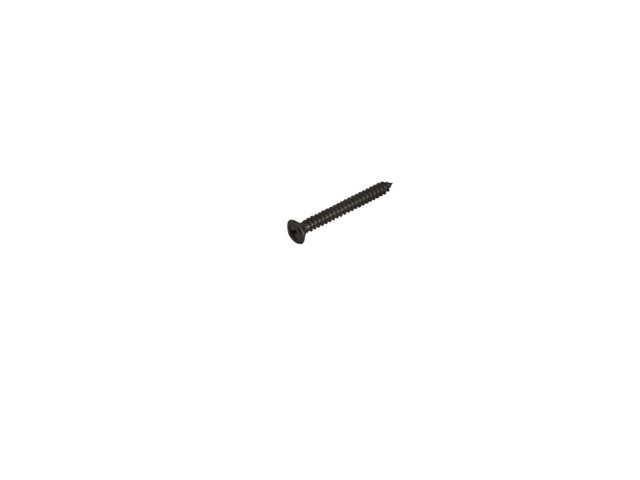

Talamex DIN 7983 Oval Head Phillips Self-Tapping Sheet Metal Screws AISI 316 Stainless Steel

ID 1358841

$ 29.17

1-2 weeks delivery time

Diameter, mm:

Length, mm:

Item:

12 pcs
18 pcs
24 pcs
30 pcs
36 pcs
48 pcs
60 pcs
72 pcs
84 pcs
96 pcs
108 pcs
144 pcs

Talamex DIN 7983 self-tapping sheet metal screws are made from AISI 316 stainless steel and feature an oval head with Phillips drive. Available in sizes from 2.9 x 9.5 mm to 5.5 x 50 mm, they provide corrosion-resistant fastening for sheet metal, fittings, and marine hardware where a slightly raised finished head is required. Supplied in 6 blisters per package.

Description
Ask a Question

Talamex DIN 7983 Oval Head Phillips Self-Tapping Sheet Metal Screws AISI 316 Stainless Steel

The Talamex DIN 7983 range includes self-tapping sheet metal screws made from AISI 316 stainless steel. These screws feature an oval head with Phillips drive, making them suitable for applications where a neat, slightly raised finished head is preferred. They are intended for fastening sheet metal, hardware, panels, and marine components in corrosion-prone environments.

Manufactured from marine-grade stainless steel, these screws offer strong resistance to corrosion and are available in a wide range of diameters and lengths. Each variant is packed in blisters for practical storage and handling.

Key Features

Self-tapping sheet metal screws according to DIN 7983
Oval head with Phillips drive
Made from AISI 316 stainless steel
High corrosion resistance for marine and outdoor use
Slightly raised finished head profile
Supplied in blister packaging
Available in multiple sizes

Technical Specifications

Brand	Talamex
Product Type	Self-tapping sheet metal screw
Standard	DIN 7983
Head Type	Oval head, Phillips drive
Material	AISI 316 stainless steel
Blisters per Package	6

Available Variants

Article Number	Size (mm)	Content per Blister	Total per Package
40.101.265	2.9 x 13	18	108 pcs
40.101.266	2.9 x 19	18	108 pcs
40.101.267	2.9 x 25	18	108 pcs
40.101.268	2.9 x 9.5	24	144 pcs
40.101.269	3.5 x 9.5	24	144 pcs
40.101.270	3.5 x 13	16	96 pcs
40.101.271	3.5 x 16	14	84 pcs
40.101.272	3.5 x 19	12	72 pcs
40.101.273	3.5 x 25	12	72 pcs
40.101.274	3.5 x 32	12	72 pcs
40.101.275	3.9 x 13	18	108 pcs
40.101.276	3.9 x 19	12	72 pcs
40.101.277	3.9 x 25	10	60 pcs
40.101.278	3.9 x 38	6	36 pcs
40.101.279	4.2 x 13	16	96 pcs
40.101.280	4.2 x 19	12	72 pcs
40.101.281	4.2 x 25	8	48 pcs
40.101.282	4.2 x 32	8	48 pcs
40.101.283	4.2 x 38	8	48 pcs
40.101.284	4.2 x 50	6	36 pcs
40.101.285	4.8 x 19	8	48 pcs
40.101.286	4.8 x 25	8	48 pcs
40.101.287	4.8 x 32	6	36 pcs
40.101.288	4.8 x 38	4	24 pcs
40.101.289	4.8 x 50	3	18 pcs
40.101.290	5.5 x 19	6	36 pcs
40.101.291	5.5 x 25	5	30 pcs
40.101.292	5.5 x 32	5	30 pcs
40.101.293	5.5 x 38	3	18 pcs
40.101.294	5.5 x 50	2	12 pcs

Applications

Sheet metal fastening
Marine fittings and hardware
Panels and light metal construction
Outdoor corrosion-resistant installations
Applications requiring a slightly raised finished head
