Euromarine DIN 94 Split Cotter Pins A4 Stainless Steel

ID 1357161

$ 2.33

1-2 weeks delivery time

Diameter, mm:

Length, mm:

Item:

15 pcs
20 pcs
25 pcs
35 pcs
40 pcs
50 pcs
60 pcs
85 pcs
100 pcs
105 pcs
125 pcs

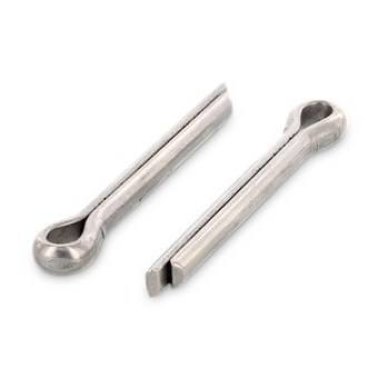

The Euromarine DIN 94 Split Cotter Pins are securing pins manufactured from A4 stainless steel for excellent corrosion resistance in marine and outdoor environments. Designed according to the DIN 94 standard, these pins are used to secure bolts, shafts, and castellated nuts by passing through a drilled hole and bending the ends. Available in diameters from 1 mm to 6.3 mm and various lengths, they are widely used in marine hardware, machinery, and mechanical assemblies.

Description
Ask a Question

Euromarine DIN 94 A4 Stainless Steel Split Cotter Pins – Metric Sizes 1–6.3 mm

The Euromarine DIN 94 Split Cotter Pins are securing pins designed to prevent nuts, bolts, or shafts from loosening during operation. Manufactured from A4 stainless steel, they provide excellent corrosion resistance and durability in marine, outdoor, and industrial environments.

These pins follow the DIN 94 standard and feature a split design that allows the legs of the pin to be bent after installation. Once inserted through a drilled hole, the two legs are spread apart to lock the fastener securely in place.

Key Features
- Manufactured according to DIN 94 standard
- Made from corrosion-resistant A4 stainless steel
- Split pin design for secure locking
- Easy installation and removal
- Suitable for marine and outdoor environments
Technical Information
- Standard: DIN 94
- Type: Split cotter pin
- Material: A4 stainless steel
- Diameter range: 1 mm – 6.3 mm
- Various lengths available
Typical Applications
- Securing castellated nuts
- Locking shafts and pins
- Marine deck hardware installation
- Mechanical assemblies and machinery
