DIN 7981 A4 Stainless Steel Phillips Pan Head Self-Tapping Screws Ø2.9–6.3 mm – 9.5–50 mm

ID 1401768

$ 6.08

1-2 weeks delivery time

Diameter, mm:

Length, mm:

Item:

25 pcs
50 pcs

DIN 7981 A4 stainless steel self-tapping screws feature a cylindrical pan head with a cross-recessed drive for fastening applications. Available in six nominal diameters — 2.9, 3.5, 3.9, 4.2, 4.8 and 5.5 mm, plus a 6.3 mm version — the screws cover lengths from 9.5 to 50 mm depending on diameter. Their A4 stainless steel construction provides corrosion resistance for indoor, outdoor and marine applications. The Ø2.9 mm versions are supplied in packs of 50, while the remaining sizes are available in packs of 25 or 50 pieces, depending on the selected dimensions.

Description
Ask a Question

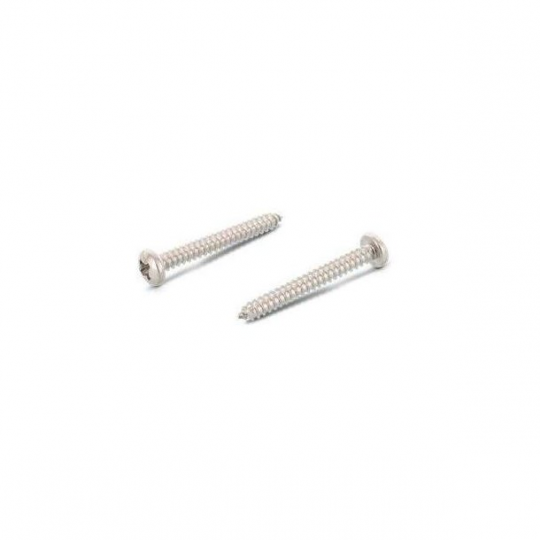

DIN 7981 A4 Stainless Steel Cross-Recessed Pan Head Self-Tapping Screws Ø2.9–6.3 mm

DIN 7981 self-tapping screws are manufactured from A4 stainless steel and feature a cylindrical pan head with a cross-recessed drive. Designed for various fastening and assembly applications, these screws combine a self-tapping design with corrosion-resistant stainless steel construction.

The range includes seven nominal screw diameters: 2.9, 3.5, 3.9, 4.2, 4.8, 5.5 and 6.3 mm. Available lengths range from 9.5 to 50 mm, depending on the selected diameter. The screws are suitable for general construction, repair, indoor, outdoor and marine fastening applications.

Each variant is supplied in packs of 25 or 50 pieces. The package quantity depends on the selected combination of screw diameter and length.

Technical Specifications

Product Type	Self-Tapping Screw
Standard	DIN 7981
Material	A4 Stainless Steel
Head Type	Cylindrical / Pan Head
Drive Type	Cross-Recessed
Available Diameters	2.9, 3.5, 3.9, 4.2, 4.8, 5.5, 6.3 mm
Length Range	9.5–50 mm, depending on diameter
Package Quantity	25 or 50 pcs

Features and Applications

Manufactured from corrosion-resistant A4 stainless steel.
DIN 7981 self-tapping screw design.
Cylindrical pan head with a cross-recessed drive.
Available in seven nominal diameters from 2.9 to 6.3 mm.
Multiple lengths available from 9.5 to 50 mm.
Suitable for general fastening, construction and repair applications.
Suitable for indoor, outdoor and marine environments.
Supplied in packs of 25 or 50 pieces.

Available Sizes and Part Numbers

Diameter	Length	Quantity	FNI Part No.
2.9 mm	9.5 mm	50 pcs	7700180
2.9 mm	13 mm	50 pcs	7700181
2.9 mm	16 mm	50 pcs	7700182
2.9 mm	19 mm	50 pcs	7700183
2.9 mm	25 mm	50 pcs	7700184
3.5 mm	9.5 mm	50 pcs	7700186
3.5 mm	13 mm	50 pcs	7700187
3.5 mm	16 mm	50 pcs	7700188
3.5 mm	19 mm	25 pcs	7700189
3.5 mm	25 mm	25 pcs	7700190
3.5 mm	32 mm	25 pcs	7700191
3.9 mm	9.5 mm	50 pcs	7700193
3.9 mm	13 mm	50 pcs	7700194
3.9 mm	16 mm	50 pcs	7700195
3.9 mm	19 mm	25 pcs	7700196
3.9 mm	25 mm	25 pcs	7700197
3.9 mm	38 mm	25 pcs	7700198
4.2 mm	13 mm	25 pcs	7700200
4.2 mm	16 mm	25 pcs	7700201
4.2 mm	19 mm	25 pcs	7700202
4.2 mm	25 mm	25 pcs	7700203
4.2 mm	32 mm	25 pcs	7700204
4.2 mm	38 mm	25 pcs	7700205
4.2 mm	50 mm	25 pcs	7700206
4.8 mm	13 mm	25 pcs	7700210
4.8 mm	16 mm	25 pcs	7700211
4.8 mm	19 mm	25 pcs	7700212
4.8 mm	25 mm	25 pcs	7700213
4.8 mm	32 mm	25 pcs	7700214
4.8 mm	38 mm	25 pcs	7700215
5.5 mm	16 mm	25 pcs	7700220
5.5 mm	19 mm	25 pcs	7700221
5.5 mm	25 mm	25 pcs	7700222
5.5 mm	32 mm	25 pcs	7700223
5.5 mm	50 mm	25 pcs	7700225
6.3 mm	32 mm	25 pcs	7700230
6.3 mm	38 mm	25 pcs	7700231
