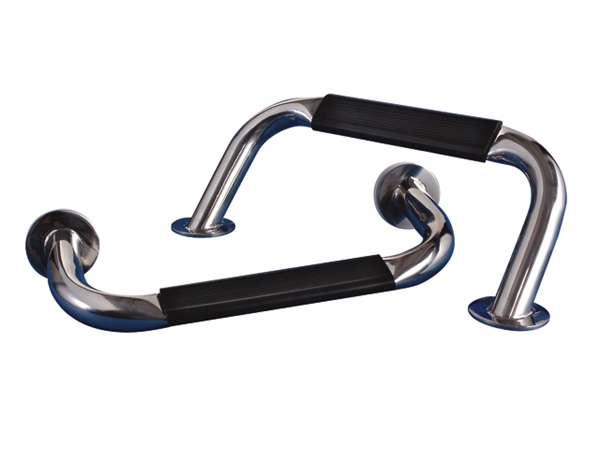

Båtsystem Stainless Steel Transom Step, 280 mm

ID 1395559

$ 131.76

1-2 weeks delivery time

Item:

90 degree angle
20 degree angle
40 degree angle

The Båtsystem stainless steel transom step is designed as an additional step between a swim platform and the deck. Three versions are available with mounting angles of 20°, 40° and 90°. All variants have a 280 mm centre-to-centre mounting distance and 55 mm flange diameter. Four P1012 spacers are supplied and can be used when required to obtain the appropriate fit and step angle; waterproof sealing around the fasteners should be made with Sikaflex or a similar product.

Description
Ask a Question

Båtsystem Stainless Steel Transom Step, 280 mm – 20° / 40° / 90°

The Båtsystem stainless steel transom step is designed for mounting on the transom and can be used as an additional step when the distance between the swim platform and the deck is too large.

The range is available in three mounting-angle versions: 20°, 40° and 90°. All versions have a centre-to-centre mounting distance of 280 mm and a flange diameter of 55 mm.

Four P1012 spacers are supplied and can be used when required to achieve the appropriate fit and step angle. Waterproof sealing with Sikaflex or a similar sealing product is recommended around the mounting fasteners.

Key Features

Stainless steel transom step
Designed as an additional step between swim platform and deck
Available in 20°, 40° and 90° versions
Centre-to-centre mounting distance: 280 mm
Flange diameter: 55 mm
Includes 4 P1012 spacers for adjustment
Waterproof sealing around the fasteners with Sikaflex or similar is recommended

Available Versions

Order No.	Supplier Code	Angle	Centre-to-Centre Distance	Flange Diameter	Barcode
00302008	F2820	20°	280 mm	55 mm	-
00302009	F2840	40°	280 mm	55 mm	7332640003732
00302007	F2890	90°	280 mm	55 mm	7332640003749
