ID
1397161
$ 8.75
1-2 weeks delivery time
Diameter, mm:
- 22
- 25

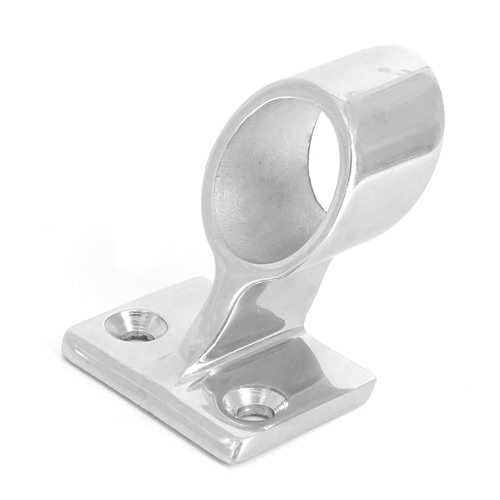

The Trem Central Handrail Connector is manufactured from AISI 316 stainless steel and is designed as a central support fitting for handrail tubing. It is available for Ø22 mm and Ø25 mm tubes and features an inclined 60° support profile. The Ø22 mm version has dimensions A 40 mm, B 26 mm and H 38 mm, while the Ø25 mm version measures A 42 mm, B 29 mm and H 38 mm.
- Description
- Ask a Question
-
Trem AISI 316 Stainless Steel Central Handrail Connectors, Ø22–25 mm
The Trem Central Handrail Connector is manufactured from AISI 316 stainless steel and is designed as a central support fitting for handrail installations. The connector features an inclined 60° support profile and is available for two handrail tube diameters: Ø22 mm and Ø25 mm.
- Brand: Trem
- Type: Central connector / support for handrails
- Material: AISI 316 stainless steel
- Support Angle: 60°
- Available Tube Diameters: Ø22 mm and Ø25 mm
- Height (H): 38 mm
Trem Article Tube Diameter A B Height (H) EAN N4222049 Ø22 mm 40 mm 26 mm 38 mm 8024827363645 N4225041 Ø25 mm 42 mm 29 mm 38 mm 8024827462430 -
