$ 26.26
1-2 weeks delivery time
Length, mm:
- 220
- 305
- 460

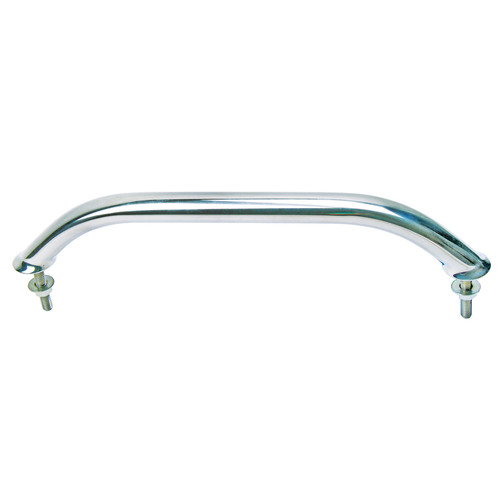

The Trem Oval Handrail range is manufactured from AISI 316 stainless steel and features an oval tube profile measuring 25.4 x 18.8 mm. Three sizes are available with mounting spacings (L1) of 220 mm, 305 mm and 460 mm and corresponding overall lengths (L) of 258 mm, 335 mm and 490 mm. All versions have a height of 60 mm and are fastened with two Ø8 mm studs.
- Description
- Ask a Question
-
Trem AISI 316 Oval Stainless Steel Handrails 25.4 x 18.8 mm, 258–490 mm
The Trem Oval Handrail range is manufactured from AISI 316 stainless steel and features an oval tube profile measuring 25.4 x 18.8 mm. Three sizes are available to suit different mounting requirements.
Each version has a height of 60 mm and is secured using two Ø8 mm threaded studs. The mounting spacing (L1) and overall length (L) vary according to the selected model.
- Brand: Trem
- Type: Oval handrail
- Material: AISI 316 stainless steel
- Tube Profile: Oval
- Tube Dimensions: 25.4 x 18.8 mm
- Height (H): 60 mm
- Fastening: 2 x Ø8 mm studs
Trem Article Mounting Spacing (L1) Overall Length (L) Height (H) Fastening EAN N4344220 220 mm 258 mm 60 mm 2 x Ø8 mm studs 8024827684306 N4344305 305 mm 335 mm 60 mm 2 x Ø8 mm studs 8024827684313 N4344460 460 mm 490 mm 60 mm 2 x Ø8 mm studs 8024827684337 -
