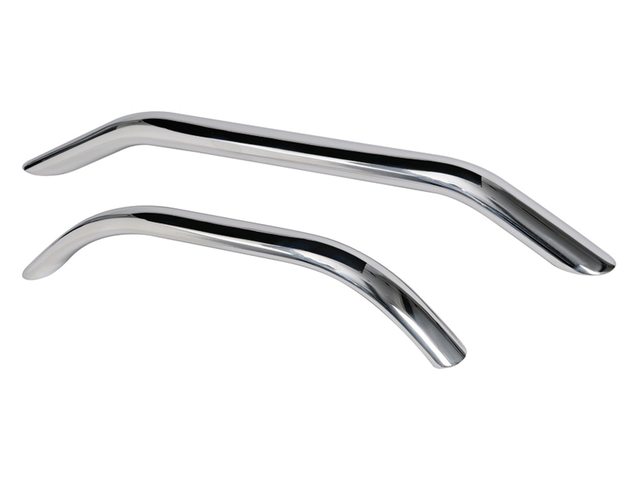

Osculati Elliptical Boat Handrail, AISI 316 Stainless Steel

ID 1396047

$ 44.51

1-2 weeks delivery time

Size, mm:

13x33
20x40

Length, mm:

305
457
610
762
915
1220
1525
1829
2080

The Osculati elliptical handrail is made from mirror-polished AISI 316 stainless steel and is available in two section sizes: 13×33 mm and 20×40 mm. All versions have a height of 59 mm. The 13×33 mm series is available in lengths of 305, 457 and 610 mm, while the 20×40 mm series is available in lengths from 305 to 2080 mm. Longer 20×40 mm versions from 1220 mm upward include 1 central upright.

Description
Ask a Question

Osculati Elliptical Boat Handrail, AISI 316 Stainless Steel, 13×33 / 20×40 mm

The Osculati elliptical handrail is manufactured from mirror-polished AISI 316 stainless steel and is designed with an elliptical section. The handrail is offered in two section sizes, 13×33 mm and 20×40 mm, with all versions having a height of 59 mm.

The range includes compact and long-length handrails for different installation requirements. The 13×33 mm versions are available in three lengths, while the 20×40 mm range covers lengths from 305 mm up to 2080 mm. Selected longer versions include 1 central upright.

Key Features

Made from mirror-polished AISI 316 stainless steel
Elliptical section design
Available in 13×33 mm and 20×40 mm section sizes
Height: 59 mm for all versions
Longer versions include 1 central upright
Available in multiple lengths from 305 mm to 2080 mm

Available Versions

Code	Length (mm)	Section (mm)	Central Uprights	Height (mm)
41.907.12	305	13×33	-	59
41.907.18	457	13×33	-	59
41.907.24	610	13×33	-	59
41.908.12	305	20×40	-	59
41.908.18	457	20×40	-	59
41.908.24	610	20×40	-	59
41.908.30	762	20×40	-	59
41.908.36	915	20×40	-	59
41.908.48	1220	20×40	1	59
41.908.60	1525	20×40	1	59
41.908.72	1829	20×40	1	59
41.908.82	2080	20×40	1	59

Technical Specifications

Material	AISI 316 stainless steel
Finish	Mirror-polished
Section Options	13×33 mm / 20×40 mm
Height	59 mm
Length Range	305–2080 mm
