$ 2,309.14
1-2 weeks delivery time
-
+
The SC80 Mounting Adapter supports KVH G8 and Fleet 77 antennas, routing cables through the base for a clean finish while reducing the antenna footprint, made from marine grade 316 stainless steel with mirror polishing, integrated cable seal, and IP68-rated gland plate, raising the antenna for easy access to the inspection hatch.
- Description
- Ask a Question
-

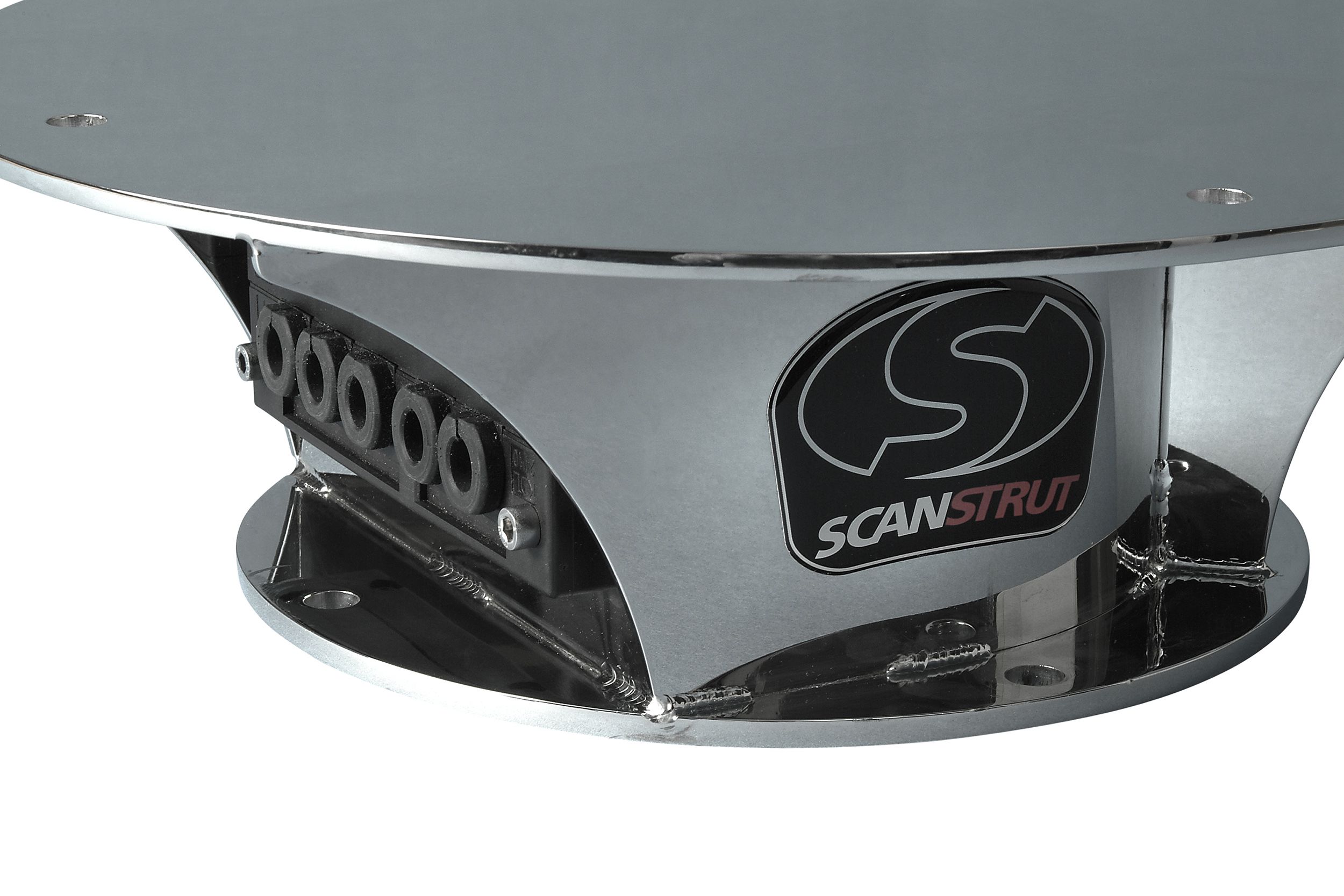

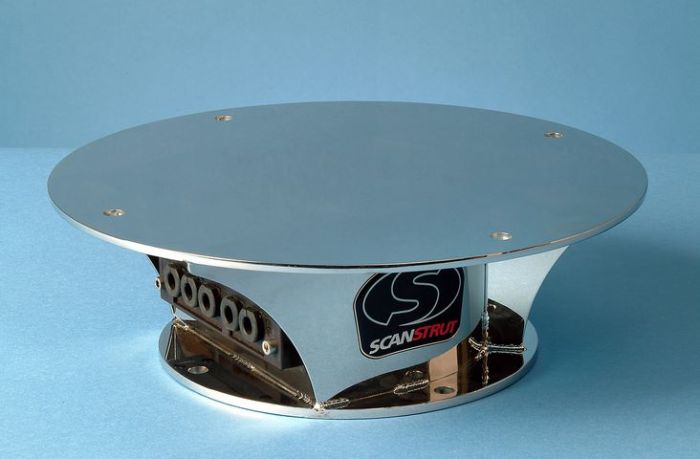

Scanstrut SC80 - Mounting Adapter for KVH G8 and Fleet 77 Antennas
The SC80 Mounting Adapter allows your selected antenna to be installed using external fixings and pre-drilled holes, ensuring a straightforward installation and hassle-free maintenance. All antenna cables are routed through the base of the mount, leaving a clean, minimalistic finish. This mount also reduces the overall footprint of your Satcom antenna, offering greater flexibility for installation locations and enabling fitting on narrow radar arches.
- Manufactured from marine grade 316 Stainless Steel
- Mirror polished for a high-end finish
- Cables installed through KDL gland plate with IP68 rating for a fully watertight installation
- Raises antenna by 80mm, allowing inspection hatch to open fully for easy cable connection
- Material: Marine Grade 316 Stainless Steel
- Height: 80mm (3.14")
- Colour: Silver
- Integrated Cable Seal: Yes
- Mounting Gasket Included: Yes
- Diameter: 370mm (14.5")
- Item number: SCSC80
-
