The Scanstrut LMB-A1 Self-Levelling Radar Mount ensures radar stability on yacht backstays through a maintenance-free hydraulic damping system that reacts to heel angle changes. This system includes a 2.6m aluminum mounting pole, integrated cable routing, universal base mounting options, and compatible extensions, eliminating backstay loading while operating entirely without power or maintenance requirements.
- Description
- Ask a Question
-
Scanstrut LMB-A1 - Self-Levelling Radar Mount – Backstay
The Scanstrut LMB-A1 is a self-levelling radar mount designed for installation on a yacht’s backstay. It ensures your radar remains level in all sea conditions and operates without any need for maintenance or power.
- Main levelling unit includes a finely tuned damping system that reacts to major changes in heel angle of the boat.
- Operates entirely maintenance-free with no power requirement.

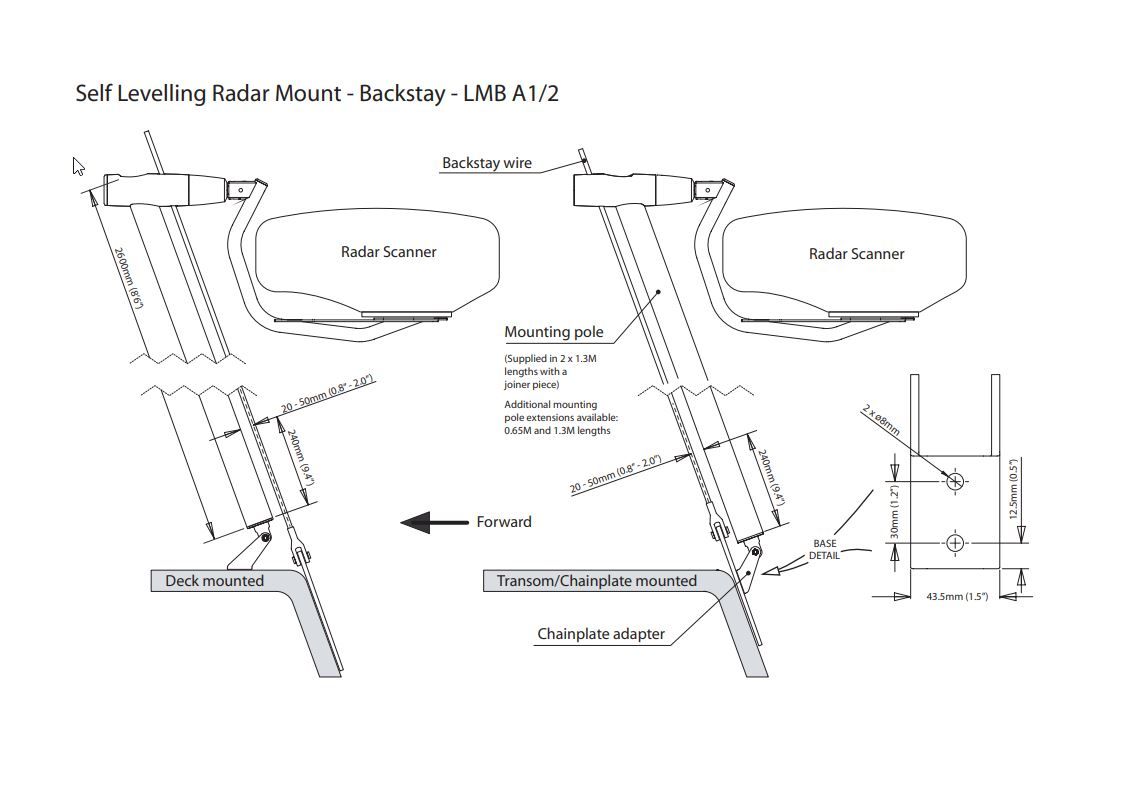

- Bespoke 2.6m (8’6”) aluminium mounting pole supplied in 2 lengths with a hidden joiner piece.

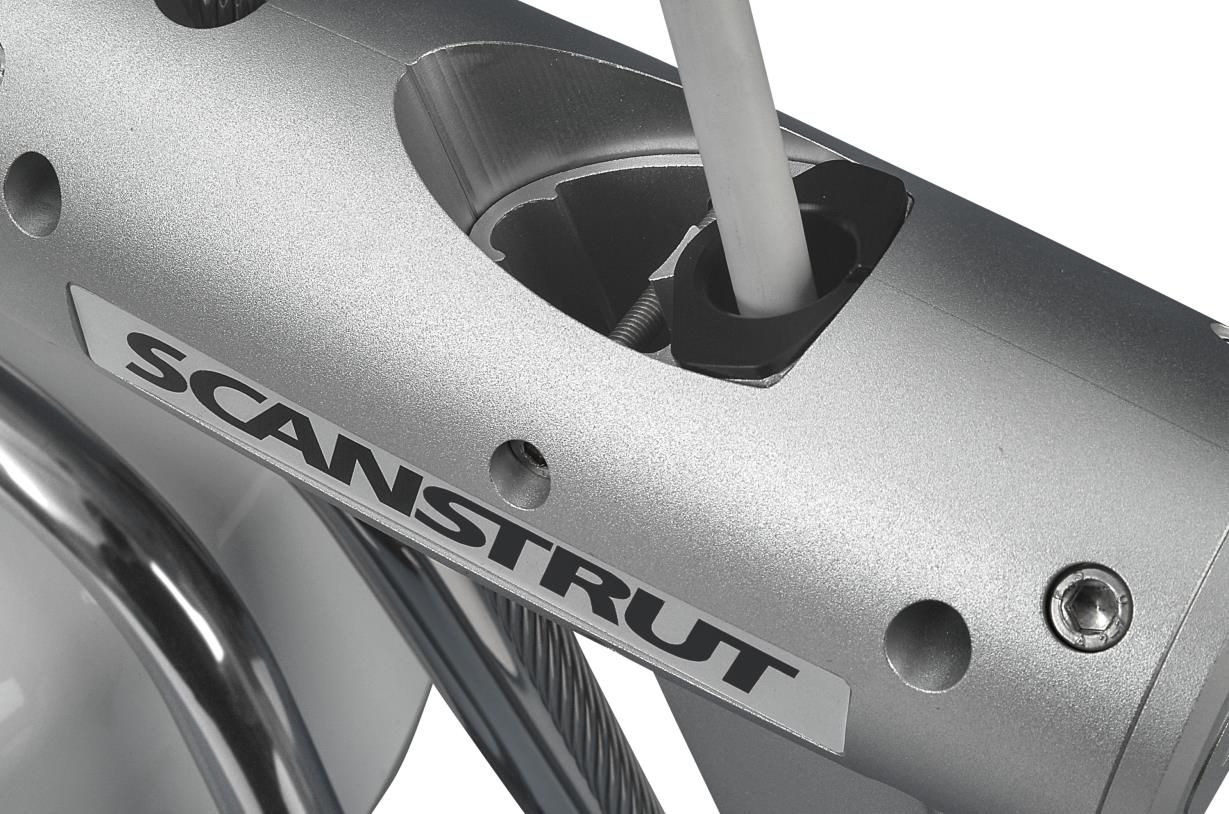

- Cables are neatly routed down a cable channel for a clean installation.
- Extension pieces available for added height and flexibility.
- High strength universal base eliminates loading on the backstay.
- Base can be deck, transom, or chainplate mounted.

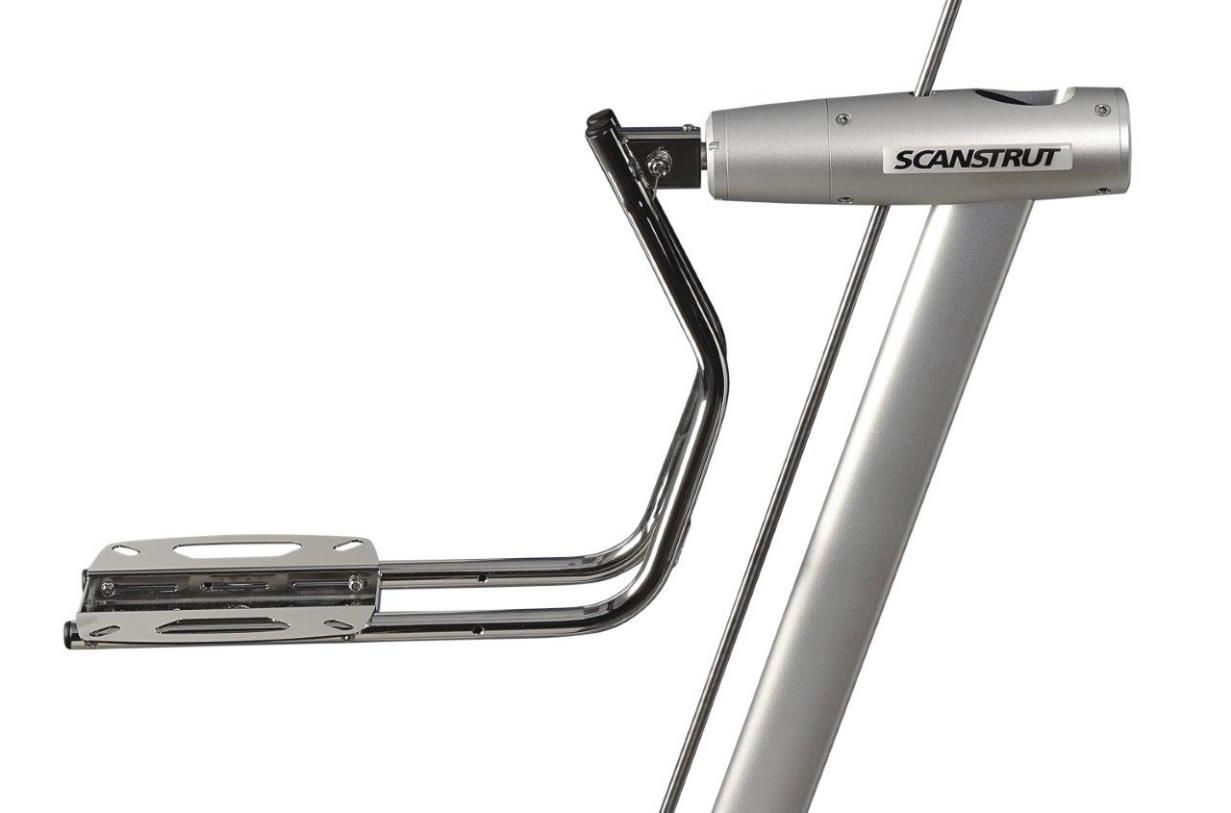

- Stainless radome cradle includes fine tune adjustment for backstay angle.
- Can be installed on both adjustable and split backstays.

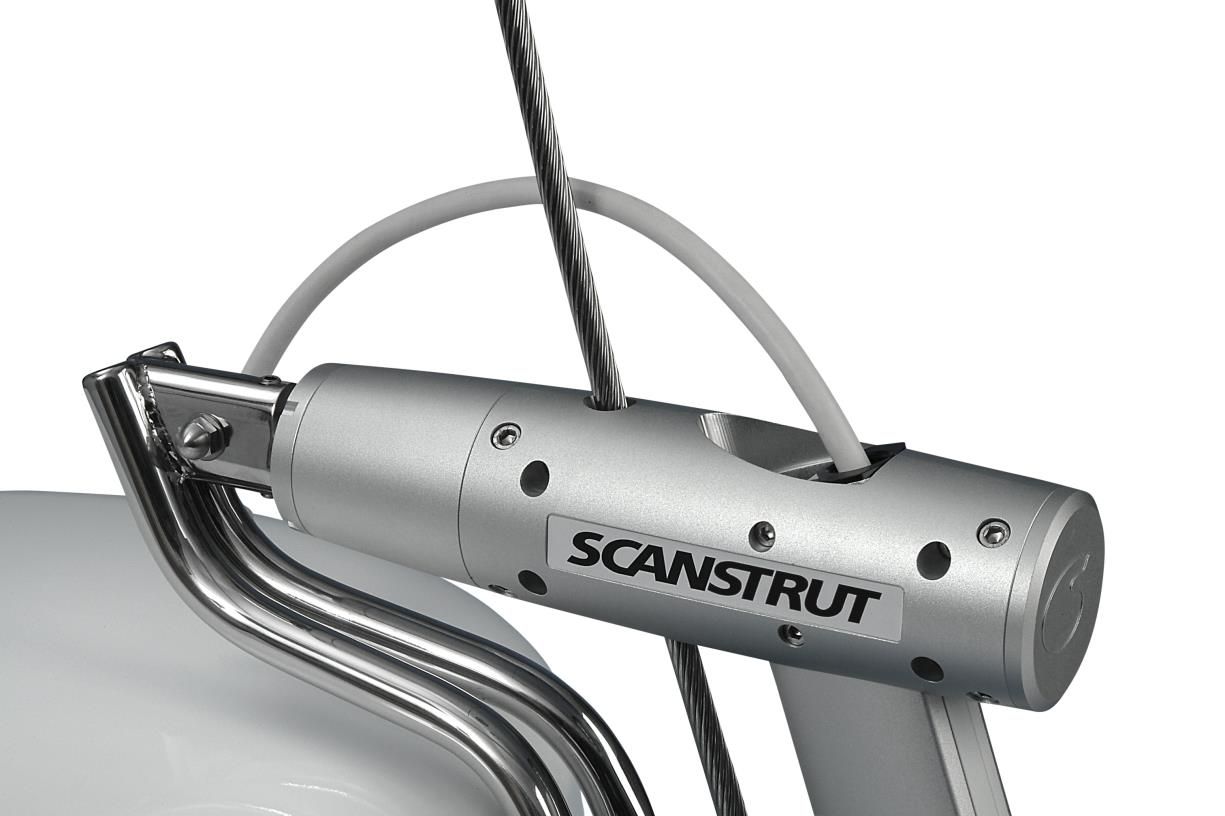

- Nylon backstay bushing supplied, allowing cable tension adjustment by clamping around backstay.
- Additional 0.6m and 1.3m lengths available for mounting your radome higher.
- Item number: SCLMB-A1
-
