Vetus LIBERO Deck Hatch class AII CE

€ 271,99

1-2 weeks delivery time
Price incl. 19% VAT

Type:

Radius 32 mm
Radius 55 mm

Size, mm:

200x200
340x195
450x320
500x370
410x410
500x500
620x620

They have hand-polished and anodized aluminum frames, rounded with a radius of 32 or 55 mm and acrylic smoky glass 10 mm thick. Even when operated in difficult conditions, VETUS windows, hatches and portholes remain as new for a long time.

Description
Ask a Question

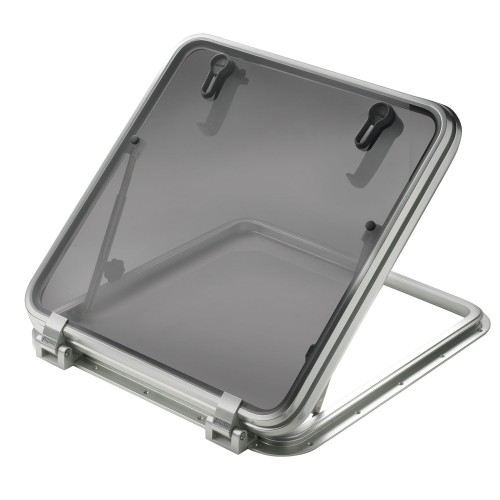

Libero hatches have hand-polished and anodized aluminum frames, curves with a radius of 32 or 55 mm and acrylic smoky glass 10 mm thick. Even under difficult conditions, Vetus windows, hatches, and portholes remain as new for a long time.

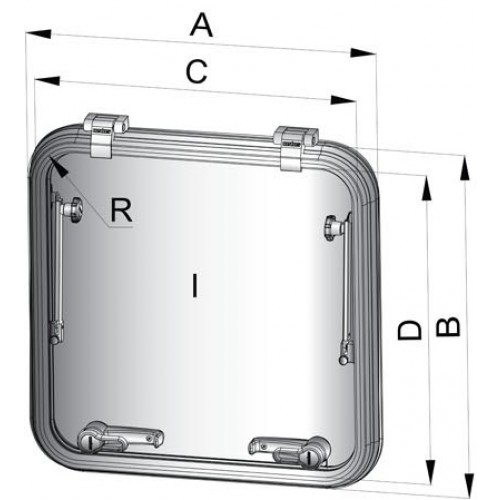

Dimensions of hatches Vetus LIBERO AII on yacht:

№	SKU	Manhole Type	External Dimensions (AxB)	Cut Dimensions (CxD)	Cut Radius
1	LIB2032L	Vent Hatch	260 x 260 mm	200 x 200 mm	32 mm
2	LIB3432L	Deck Hatch	400 x 255 mm	340 x 195 mm	32 mm
3	LIB3255L / LIB3232L	Deck Hatch	510 x 380 mm	450 x 320 mm	55 / 32 mm
4	LIB3755L / LIB3732L	Deck Hatch	560 x 430 mm	500 x 370 mm	55 / 32 mm
5	LIB4155L	Deck Hatch	470 x 470 mm	410 x 410 mm	55 mm
6	LIB5055L / LIB5032L	Escape Hatch	560 x 560 mm	500 x 500 mm	55 / 32 mm
7	LIB6255L / LIB6232L	Escape Hatch	680 x 680 mm	620 x 620 mm	55 / 32 mm

Our team will help you to find the ship's glazing for your yacht or boat. Please, address our phone numbers managers or through a feedback form .

Articles according to the Vetus catalog: LIB2032L, LIB3432L, LIB3232L, LIB3255L, LIB3732L, LIB3755L, LIB4155L, LIB5032L, LIB5055L, LIB6232L, LIB6255L
