ID
1385625
$ 14,172.21
1-2 weeks delivery time
Item:
- Vessel 500 Tons
- Vessel 600 Tons
- Vessel 700 Tons
The Seares Seadamp HEAVY-X series is a premium range of patented hydraulic mooring shock absorbers engineered for very large yachts, commercial ships and vessels from 500 to 700 tons displacement. Constructed entirely from stainless steel, these hydraulic dampers reduce loads on mooring ropes and fairleads, extend equipment life, and deliver exceptionally quiet, safe and comfortable mooring. The system features a 125 mm hydraulic stroke, breaking loads up to 370,000 N, and can be fully customized for demanding marine installations.
- Description
- Ask a Question
-

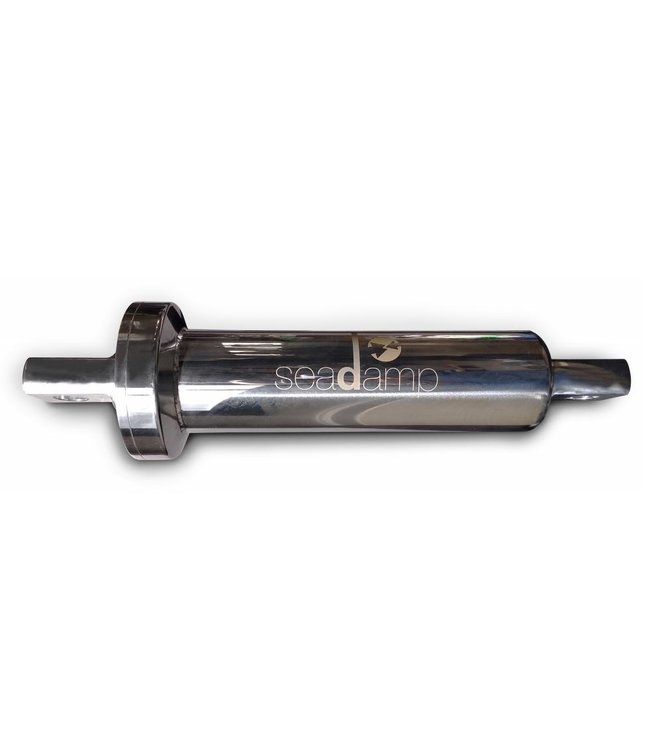

Seares Seadamp HEAVY-X Hydraulic Mooring Shock Absorber – For 500–700 Ton Vessels
The Seares Seadamp HEAVY-X series represents the highest-capacity hydraulic mooring solution developed for very large yachts, commercial vessels and specialized marine applications. Designed for vessels from 500 to 700 tons displacement, these hydraulic dampers provide exceptional protection against dynamic mooring forces while delivering silent operation and maximum onboard comfort.
Using patented hydraulic technology, Seadamp HEAVY-X significantly reduces loads transmitted to mooring ropes, fairleads and deck fittings, extending their service life while improving safety during changing weather, swell and tidal conditions.
Manufactured entirely from stainless steel, each unit is environmentally friendly, fully customizable and designed for integration into demanding marine installations. The HEAVY-X series is also available in the mechatronic Seadamp PLUS-H version for advanced monitoring and control applications.
Key Features
- Patented hydraulic mooring shock absorber technology
- Designed for vessels from 500 to 700 tons displacement
- Hydraulic stroke: 125 mm
- Reduces loads on mooring ropes and fairleads
- Extends the service life of mooring equipment
- Fully customizable for vessel requirements
- Entirely manufactured from stainless steel
- Silent operation with outstanding stabilizing effect
- Eco-friendly hydraulic system
- Compatible with Seadamp PLUS-H mechatronic version
- Suitable for vessels over 55 tons with no practical displacement limitations through customized configurations
Technical Specifications
Model Item Number Maximum Vessel Displacement Breaking Load Hydraulic Stroke Seadamp HEAVY-X1 389062 Up to 500 tons 320,000 N 125 mm Seadamp HEAVY-X2 389063 Up to 600 tons 340,000 N 125 mm Seadamp HEAVY-X3 389064 Up to 700 tons 370,000 N 125 mm -
