ID
1385508
$ 99.64
1-2 weeks delivery time
Item:
- Boat 6 meter
- Boat 11 meter
- Boat 8 meter
- Boat 14 meter
- Boat 16 meter
The Douglas Marine Silenced Stainless Steel Mooring Spring is a patented shock-absorbing device designed to reduce mooring loads, vibration and operating noise. Manufactured from high-resistance stainless steel, each spring incorporates silencer discs, anti-extension end stops and specially designed head assemblies that maintain axial alignment during extension. The range is suitable for boats up to 16 m or 12 tonnes, with wire diameters from 5 to 12 mm, elastic capacities from 60 to 400 kg, and breaking loads from 1,370 to 6,200 kg.
- Description
- Ask a Question
-

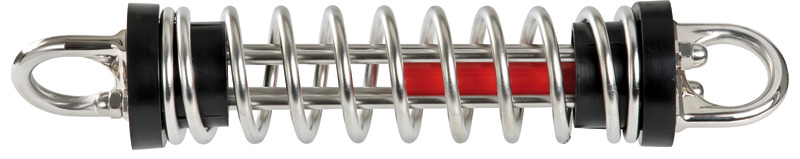

Douglas Marine Silenced Stainless Steel Mooring Spring for Boats up to 16 m
The Douglas Marine Silenced Stainless Steel Mooring Spring is designed to absorb dynamic loads generated by waves, wind, swell and vessel movement while reducing noise and vibration within the mooring system. Its controlled spring action helps protect mooring ropes, cleats, bollards and deck fittings from sudden shock loads.
The patented construction combines high-resistance stainless steel with integrated silencer discs and anti-extension limiters. Specially designed end assemblies maintain correct axial alignment during extension, supporting smooth operation and improved load distribution under changing mooring conditions.
Key Features
- Original Douglas Marine silenced mooring spring
- High-resistance stainless steel construction
- Patented low-noise design
- Integrated silencer discs reduce noise and vibration
- Anti-extension end-stop system
- Special head design maintains axial alignment
- Controlled shock absorption for mooring systems
- Reduces loads on ropes, cleats and dock fittings
- Suitable for boats up to 16 m or 12 tonnes
Available Variants
Osculati Article Douglas Marine Article Boat Length Boat Weight Spring Ø Length Wire Ø Weight Elastic Capacity Breaking Load 01.198.06 806-006S Up to 6 m Up to 4 t 70 mm 310 mm 5 mm 1.4 kg 60 kg 1,370 kg 01.198.08 806-008S Up to 8 m Up to 6 t 70 mm 350 mm 6 mm 1.2 kg 100 kg 1,830 kg 01.198.11 806-011S Up to 11 m Up to 8 t 75 mm 380 mm 8 mm 1.9 kg 120 kg 2,500 kg 01.198.14 806-014S Up to 14 m Up to 10 t 90 mm 480 mm 9 mm 3.2 kg 190 kg 3,800 kg 01.198.16 806-016S Up to 16 m Up to 12 t 90 mm 480 mm 12 mm 3.9 kg 400 kg 6,200 kg
Technical Specifications
Brand Douglas Marine Product Type Silenced Mooring Spring / Mooring Shock Absorber Material High-resistance stainless steel Noise Reduction Integrated silencer discs Extension Protection Anti-extension end stops and length limiter Alignment Special end assemblies for axial extension Suitable Boat Length Up to 6–16 m, depending on model Suitable Boat Weight Up to 4–12 tonnes, depending on model Spring Diameter 70–90 mm Overall Length 310–480 mm Wire Diameter 5–12 mm Elastic Capacity 60–400 kg Breaking Load 1,370–6,200 kg Application Shock, vibration and noise reduction in marine mooring systems
Included Articles
- Osculati 01.198.06 / Douglas Marine 806-006S — for boats up to 6 m or 4 t
- Osculati 01.198.08 / Douglas Marine 806-008S — for boats up to 8 m or 6 t
- Osculati 01.198.11 / Douglas Marine 806-011S — for boats up to 11 m or 8 t
- Osculati 01.198.14 / Douglas Marine 806-014S — for boats up to 14 m or 10 t
- Osculati 01.198.16 / Douglas Marine 806-016S — for boats up to 16 m or 12 t
-
