ID
1311255
$ 16,870.93
1-2 weeks delivery time
-
+
This 5-meter aluminium gangway for passenger ships complies with ES-TRIN NEN-EN 14206 and offers wheelchair accessibility with anti-slip slats no wider than 30 cm, a diamond plate walking surface, U-section support at one end, nylon wheels at the other, and removable stainless steel railings with fall-arrest nets.
- Description
- Ask a Question
-
Gangways For Passenger Ships 160x60 5m

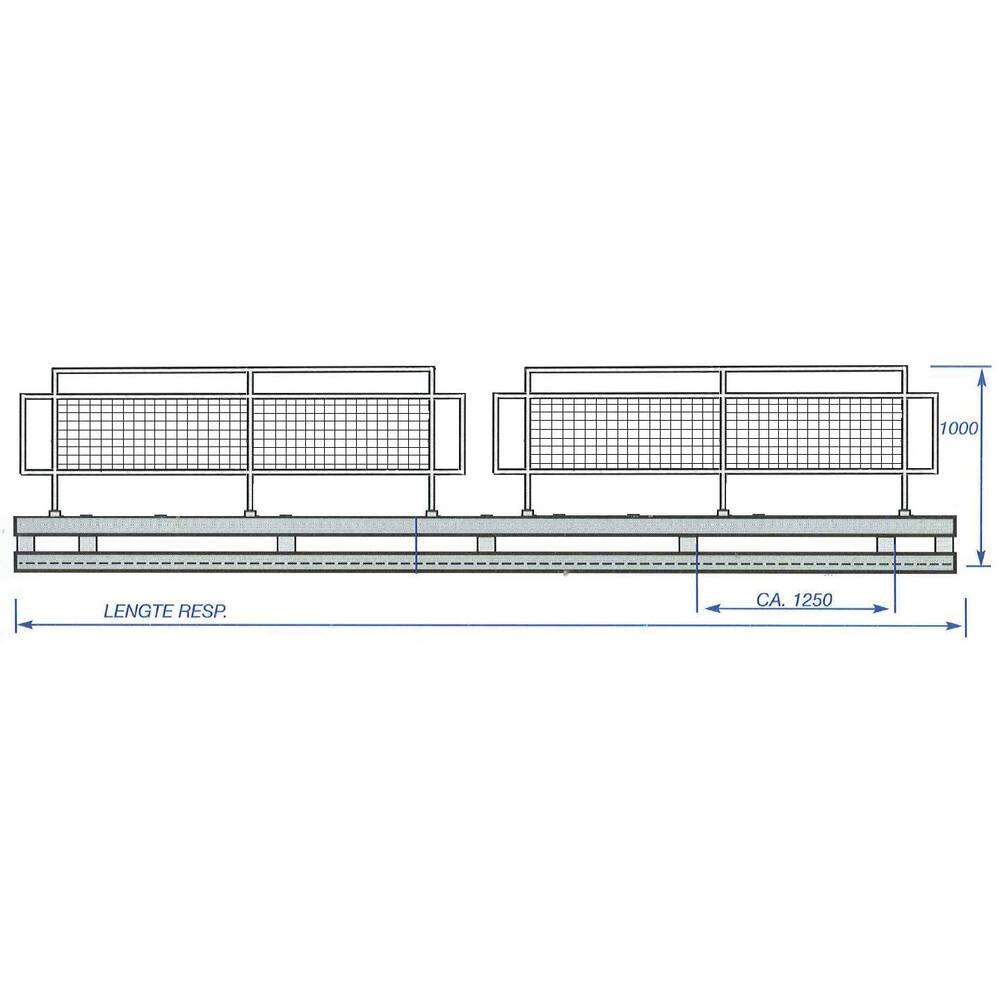

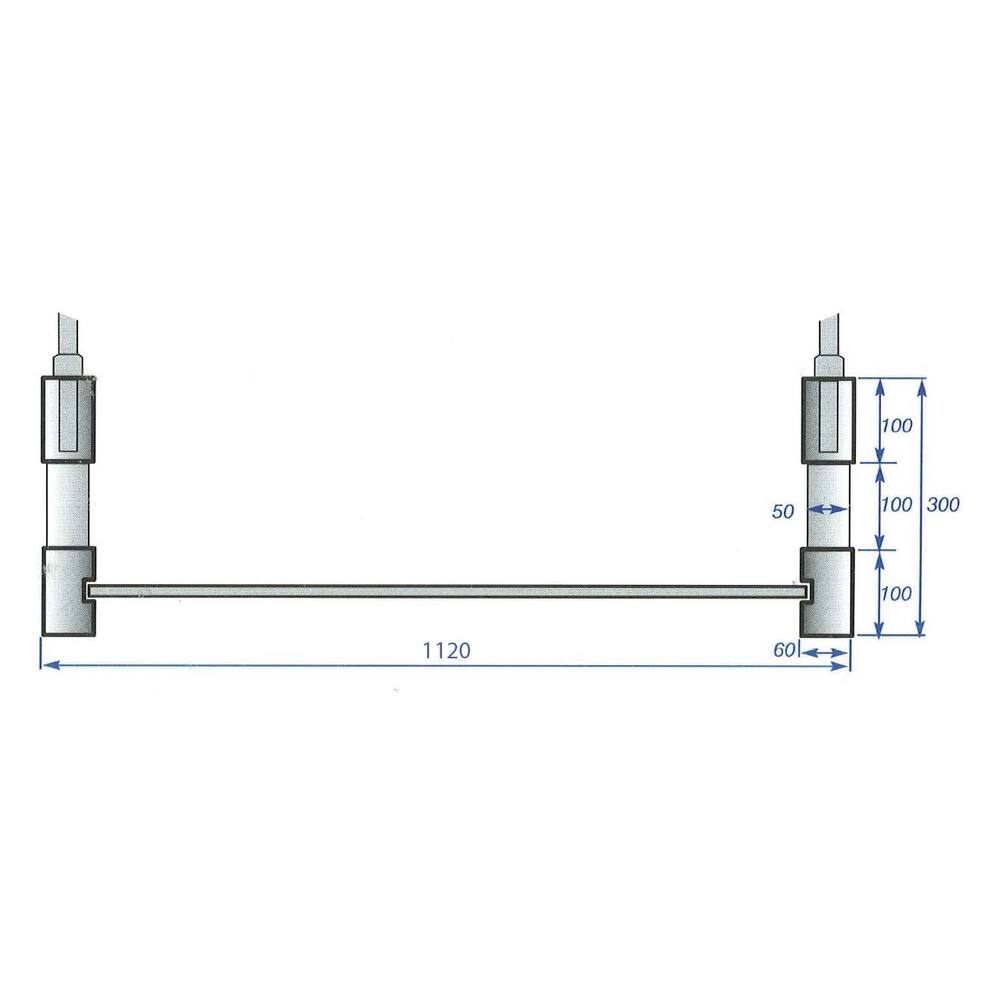

This 5-meter aluminium gangway for passenger ships complies with the current ES-TRIN requirements (NEN-EN 14206). It allows wheelchair access with anti-slip slats no wider than 30 cm and features a diamond plate walking surface, U-section at one end for support, and nylon wheels at the other. The removable stainless steel railings with fall-arrest nets on both sides are not included in the weight. Certified accordingly.
- Material: aluminium
- Height: 150 or 340 mm
- Width: 1020 mm overall, 900 mm between rails
- Stanchion height: 1000 mm from walking surface
- Product code: 58.31.500
- Number of stanchions: 2 x 4
- Dimensions tube: 160 x 60 mm
- Weight: 140 kg
- Tube: Single tube
- Length: 500 cm
-
