Osculati 12V IP67 Oculus Ultra-Flat LED Courtesy Light 80x32 mm Stainless Steel

ID 1307390

$ 28.71

1-2 weeks delivery time

Type:

White Light
Blue Light

Item:

Front Light
Perimeter Light

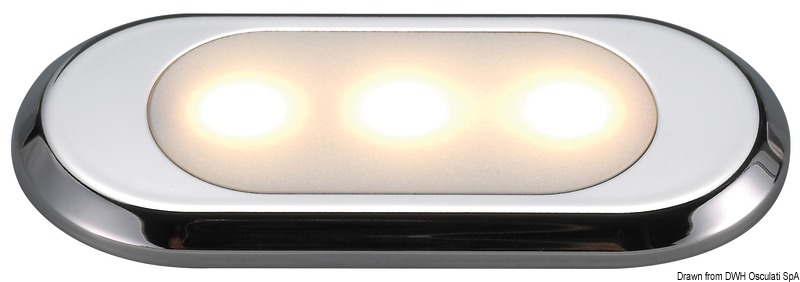

The Osculati 12V IP67 Oculus Ultra-Flat Courtesy Lights (models 13.178.10, .11, .14, .15) are low-profile LED lights designed for surface mounting without recess. Measuring just 5 mm thick, each light features a watertight technopolymer body with a polished stainless steel ring and includes 3 LEDs. Available with front or 360° perimeter orientation, these IP67-rated units emit 10–30 lumens of white or blue light with beam angles of 100° or 360°, making them ideal for decks, cabins, or stairs on marine vessels.

Description
Ask a Question

Osculati 13.178.10 / 13.178.11 / 13.178.14 / 13.178.15 – 12V IP67 Oculus Ultra-Flat LED Courtesy Light 80x32 mm, Stainless Steel

Description:

The Osculati IP67 Oculus Ultra-Flat LED Courtesy Lights are a compact and elegant lighting solution for marine interiors and exteriors. These surface-mount lights require no recess and have an ultra-thin 5 mm profile. Each model features a watertight technopolymer body with a polished stainless steel ring or front panel for enhanced corrosion resistance and aesthetic appeal. With frontal or 360° perimeter beam options, they are well-suited for cabins, steps, walkways, and decks on yachts and boats.

Key Features:

Ultra-flat design – only 5 mm thick
No recess required – surface mount with screw fixings
IP67 waterproof rating for marine environments
Technopolymer watertight casing with stainless steel finishing ring or panel
Available in white (30 lm) or blue (10 lm) light versions
Beam angles: 100° for front lights, 360° for perimeter lights
Low power draw – 0.3 W at 12V

Specifications:

Item	Model	Voltage (V)	Power (W)	Luminous Flux (lm)	Color Temp (K)	Beam Angle	No. of LEDs	Light Color	Dimensions (mm)	Thickness (mm)	Waterproof
13.178.10	Front Light, SS ring	12	0.3	30	3000	100°	3	White	80 × 32	5	IP67
13.178.11	Front Light, SS ring	12	0.3	10	–	100°	3	Blue	80 × 32	5	IP67
13.178.14	Perimeter Light, SS front panel	12	0.3	30	3000	360°	3	White	80 × 32	5	IP67
13.178.15	Perimeter Light, SS front panel	12	0.3	10	–	360°	3	Blue	80 × 32	5	IP67

Application:

Perfect for interior or exterior use on boats and yachts, the Oculus lights offer soft and efficient courtesy lighting for steps, bulkheads, passageways, or under benches. Their waterproof design and durable stainless steel finish make them ideal for demanding marine conditions.

Benefits:

Ultra-slim profile for seamless integration without recess
Stainless steel front adds durability and a premium look
White or blue LED options suit different lighting atmospheres
Front or perimeter light options for directional or ambient illumination
Quick and easy installation using standard screws
IP67 protection ensures safe operation in wet environments
