Osculati 12V IP67 Clear LED Courtesy Light Ø38 mm, Polycarbonate, Recess Mounting

ID 1307408

$ 10.04

1-2 weeks delivery time

Type:

White Light
Blue Light
Red Light

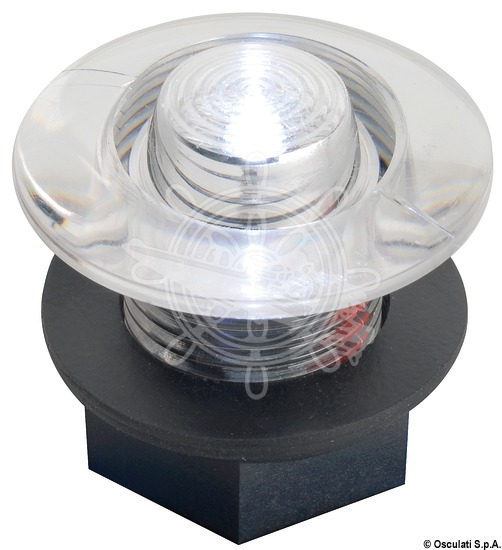

The Osculati 13.183.01 / 13.183.02 / 13.183.03 are compact IP67-rated courtesy lights with a 38 mm diameter and 22 mm recess depth. Built from transparent polycarbonate, they emit white (12.5 lm), red or blue light (2 lm) via a 120° beam angle. Designed for flush through-mounting with 8 mm overhang, they are ideal for steps, cockpits, or accent lighting on marine vessels.

Description
Ask a Question

Osculati 13.183.01 / 13.183.02 / 13.183.03 – 12V IP67 Clear LED Courtesy Light Ø38 mm, Recess Mount Polycarbonate

Description:

The Osculati 12V IP67 Clear LED Courtesy Lights are designed for marine use where compact, waterproof illumination is needed. These lights are made of transparent polycarbonate and feature through-mount installation. Offering white, red, or blue light options, they combine efficient 0.2 W LED output with wide 120° beam coverage. With a discreet 8 mm overhang and 22 mm recess depth, they are ideal for flush integration into boat interiors or exteriors.

Key Features:

Compact IP67-rated LED courtesy lights for marine applications
Transparent polycarbonate housing with through-mount installation
Available with white, red, or blue LED
Wide 120° beam angle for diffuse lighting
Energy-efficient, consuming just 0.2 W
Flush-fit with only 8 mm overhang
Recess mounting with 22 mm depth

Specifications:

Item	Voltage (V)	Power (W)	Luminous Flux (lm)	Color Temp (K)	Beam Angle	No. of LEDs	Light Color	Recess Ø (mm)	External Ø (mm)	Overhang (mm)
13.183.01	12	0.2	12.5	5500–6300	120°	1	White	22	38	8
13.183.02	12	0.2	2	–	120°	1	Red	22	38	8
13.183.03	12	0.2	2	–	120°	1	Blue	22	38	8

Application:

These ultra-compact IP67 lights are ideal for marine environments requiring recessed, waterproof step or accent lighting. Use them in cockpits, saloons, on stairwells, or along deck perimeters. Their small size, flush appearance, and corrosion-resistant materials make them a great fit for both interior and exterior use on yachts, sailing boats, and motorboats.

Benefits:

Discreet, low-profile design blends into any surface
Efficient 0.2 W power consumption with strong localized lighting
Reliable waterproofing (IP67) for exposed environments
Choice of white, red, or blue light for safety, ambiance, or night vision preservation
Quick installation with 22 mm recess depth
