Osculati 12/24V IP67 Alcor Ambient LED Courtesy Light Ø38 mm Stainless Steel

ID 1307530

$ 32.52

1-2 weeks delivery time

Type:

White Light
Blue Light
Red Light

The Osculati Alcor Ambient LED Courtesy Light Ø38 mm is a recessed, IP67-rated stainless steel light for 12/24V systems. Features 100° beam angle and snap mounting. Power: 0.1–0.2W. Available in white (20 lm), blue, or red (10 lm). Recess Ø25.4 mm.

Description
Ask a Question

Osculati 13.425.xx – 12/24V IP67 Alcor Ambient LED Courtesy Light Ø38 mm Stainless Steel

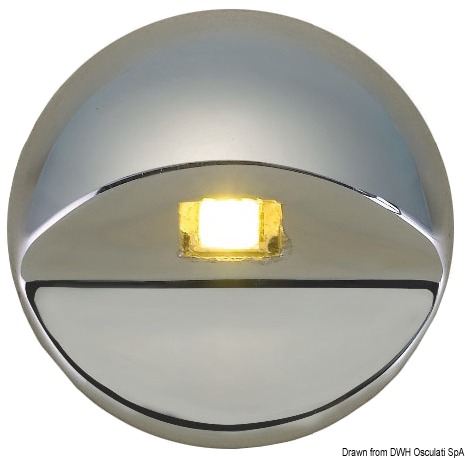

The Osculati Alcor Ambient Courtesy Light (Ø38 mm) is a compact, elegant LED light designed for recessed mounting in marine interiors and exteriors. Crafted from AISI 316 stainless steel and rated to IP67, it is built to withstand harsh marine conditions while delivering a refined ambient glow for steps, decks, or cabins.

This model features snap-fit installation into a 25.4 mm recess and emits light in a 100° downward beam. Available in warm white, blue, or red LED color options, with ultra-low power consumption of 0.1–0.2W. Operates on both 12V and 24V DC systems.

Available Versions:

13.425.90: White LED – 3000K – 20 lumens
13.425.91: Blue LED – 10 lumens
13.425.92: Red LED – 10 lumens

Key Features:

Recessed LED courtesy light with ambient downward beam
IP67 waterproof stainless steel construction (AISI 316)
Snap-fit installation, no visible screws
100° beam angle, ideal for step or deck lighting
Works with both 12V and 24V systems
Very low power consumption: 0.1–0.2 W

Technical Specifications:

Model	Voltage	Power	Lumen	Color Temp	Light Color	Beam Angle	LEDs	Recess Ø	External Ø	Overhang	IP Rating
13.425.90	12/24 V	0.1 W	20 lm	3000 K	White	100°	1	25.4 mm	38 mm	12 mm	IP67
13.425.91	12/24 V	0.2 W	10 lm	–	Blue	100°	1	25.4 mm	38 mm	12 mm	IP67
13.425.92	12/24 V	0.2 W	10 lm	–	Red	100°	1	25.4 mm	38 mm	12 mm	IP67

These compact and elegant courtesy lights from Osculati offer a refined solution for low-level illumination onboard, combining marine-grade durability with minimalistic design and energy efficiency.
